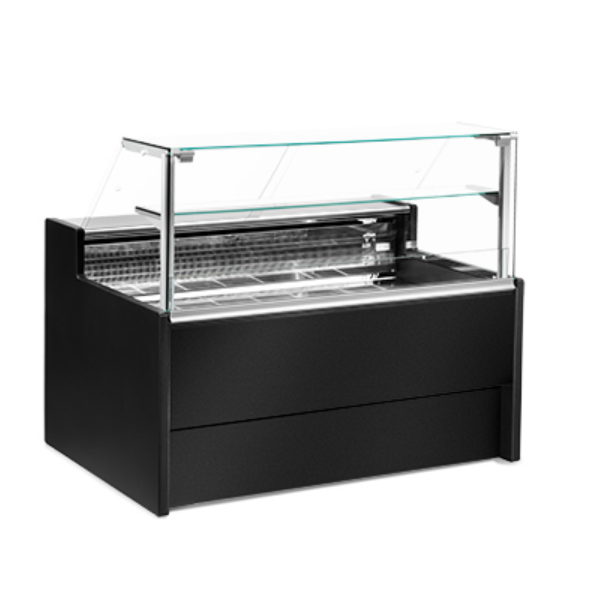

Meat and deli serve over counter display fridge PORTHOS, depth 108.5 cm

DESCRIPTION
Excellent display case for medium surfaces, ideal for meats, cured meats and dairy products. Servo-assisted structure with glass hat.

Available in the version:

• static with cell (+4° / +6° C)
• ventilated with cell (0° / +4° C)

Worktop in 304 steel, display surface in 304 stainless steel.

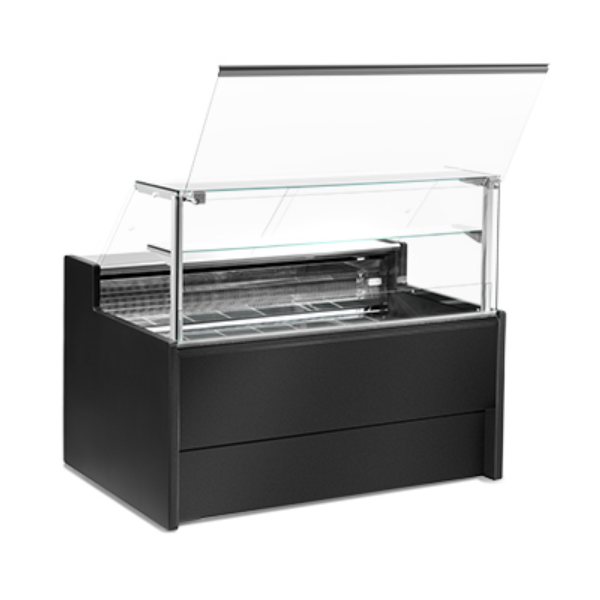

Aluminum load-bearing structure, straight glass that opens upwards, upper LED lighting. Control panel with electronic thermostat and pause defrost, thermoformed ABS shoulders, manual drain condensation tray, potentiometer for fans, complete with cataphoresis-treated evaporator.

Enter the color of the upper, lower front panel and shoulders in the notes when ordering, choosing from the options.

TOP FRONT PANEL

Standard colors

Optional colours

LOWER FRONT PANEL
GRAY (standard)
BLACK (optional color)
SHOULDERS
GRAY (standard)
BLACK (optional color)

The installation of the intermediate glass (accessory not supplied) is only possible during the production phase.

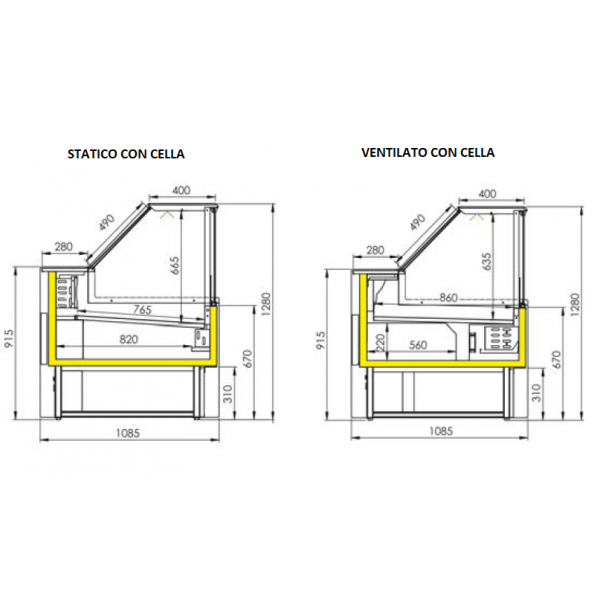

DATASHEET

STATIC SHOWCASES

Length 150 cm

• Dimensions : L.150 x D.108.5 x H.128 cm
• Temperature : +4° / +6° C
• Power supply : 230 V / 1 N / 50 Hz
• Depth of display surface : 76.5 cm
• Exhibition surface area : 1.08 m2
• Lighting : 1 x 14 W
• Counters : 1

Length 200 cm

• Dimensions : L.200 x D.108.5 x H.128 cm
• Temperature : +4° / +6° C
• Power supply : 230 V / 1 N / 50 Hz
• Depth of display surface : 76.5 cm
• Exhibition surface area : 1.47 m2
• Lighting : 2 x 9 W
• Counters : 2

Length 250 cm

• Dimensions : L.250 x D.108.5 x H.128 cm
• Temperature : +4° / +6° C
• Power supply : 230 V / 1 N / 50 Hz
• Depth of display surface : 76.5 cm
• Exhibition surface area : 1.85 m2
• Lighting : 2 x 11 W
• Counters : 3

Length 300 cm

• Dimensions : L.300 x D.108.5 x H.128 cm
• Temperature : +4° / +6° C
• Power supply : 230 V / 1 N / 50 Hz
• Depth of display surface : 76.5 cm
• Exhibition surface area : 2.23 m2
• Lighting : 2 x 14 W
• Counters : 3

VENTILATED SHOWCASES

Length 150 cm

• Dimensions : L.150 x D.108.5 x H.128 cm
• Temperature : +0° / +4° C
• Power supply : 230 V / 1 N / 50 Hz
• Depth of display surface : 86 cm
• Exhibition surface area : 1.22 m2
• Fan : 1 x 19W
• Lighting : 1 x 14 W
• Counters : 1

Length 200 cm

• Dimensions : L.200 x D.108.5 x H.128 cm
• Temperature : +0° / +4° C
• Power supply : 230 V / 1 N / 50 Hz
• Depth of display surface : 86 cm
• Exhibition surface area : 1.65 m2
• Fans : 2 x 19W
• Lighting : 2 x 9 W
• Counters : 2

Length 250 cm

• Dimensions : L.250 x D.108.5 x H.128 cm
• Temperature : +0° / +4° C
• Power supply : 230 V / 1 N / 50 Hz
• Depth of display surface : 86 cm
• Exhibition surface area : 2.08 m2
• Fan : 2 x 19 W
• Lighting : 2 x 11 W
• Counters : 3

Length 300 cm

• Dimensions : L.300 x D.108.5 x H.128 cm
• Temperature : +0° / +4° C
• Power supply : 230 V / 1 N / 50 Hz
• Depth of display surface : 86 cm
• Exhibition surface area : 2.51 m2
• Fan : 3 x 19 W
• Lighting : 2 x 14 W
• Counters : 3
