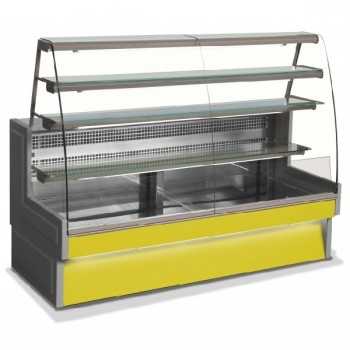

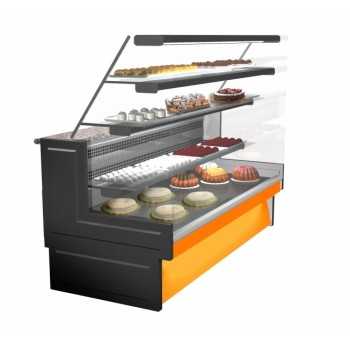

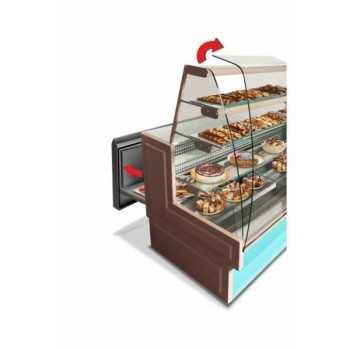

Serve over counter display fridge RIVO, depth 87.6 cm

Horizontal refrigerated display case ideal for: bakeries , pastry shops and snacks .

STANDARD EQUIPMENT:

• Thermoformed and insulated sides (50 mm thick) with tempered glass side
• N° 3 glass shelves (the lower one is refrigerated)
• Tempered front glass
• Anti-condensation glass front
• Electronic control panels
• Scratch-resistant laminate worktop
• Lower display shelf in stainless steel with extractable drawers
• Stop defrost and removable condensate tray in the version with built-in unit
• Condensation water drain siphon in the remote version
• Climate class 3 (Temperature +25 °C; Relative humidity 60%)

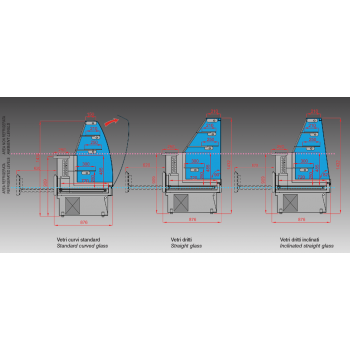

AVAILABLE VERSIONS:

• with CURVED GLASS
• with STRAIGHT GLASS
• with STRAIGHT INCLINED GLASS

Available colors:

DATASHEET

RIVO100

Dimensions : L.103 x D.87.6 x H.143.2 cm
Depth of display surface : 72 cm
Shelves Depth : 30 cm (lower shelf) - 25 cm (middle shelf) - 21 cm (upper shelf)
Exhibition surface area : 1.48 m2
Temperature : +3° / +5° C
Total Power Absorption : 585 W (display case with built-in group) - 400 W (display case with remote group)
Power Absorbed by Lighting : 105 W
Drawers : 1
Gross Weight : 180 kg

RIVO140

Dimensions : L.143.5 x D.87.6 x H.143.2 cm
Depth of display surface : 72 cm
Shelves Depth : 30 cm (lower shelf) - 25 cm (middle shelf) - 21 cm (upper shelf)
Exhibition surface area : 1.79 m2
Temperature : +3° / +5° C
Total Power Absorption : 595 W (display case with built-in group) - 570 W (display case with remote group)
Power Absorbed by Lighting : 140 W
Drawers : 1
Gross Weight : 210 kg

RIVO200

Dimensions : L.191 x D.87.6 x H.143.2 cm
Depth of display surface : 72 cm
Shelves Depth : 30 cm (lower shelf) - 25 cm (middle shelf) - 21 cm (upper shelf)
Exhibition surface area : 2.67 m2
Temperature : +3° / +5° C
Total Power Absorption : 915 W (display case with built-in group) - 760 W (display case with remote group)
Power Absorbed by Lighting : 175 W
Drawers : 2
Gross Weight : 225 kg

RIVO280

Dimensions : L.279 x D.87.6 x H.143.2 cm
Depth of display surface : 72 cm
Shelves Depth : 30 cm (lower shelf) - 25 cm (middle shelf) - 21 cm (upper shelf)
Exhibition surface area : 3.86 m2
Temperature : +3° / +5° C
Total Power Absorption : 1560 W (display case with built-in group) - 1140 W (display case with remote group)
Power Absorbed by Lighting : 280 W
Drawers : 3
Gross Weight : 240 kg

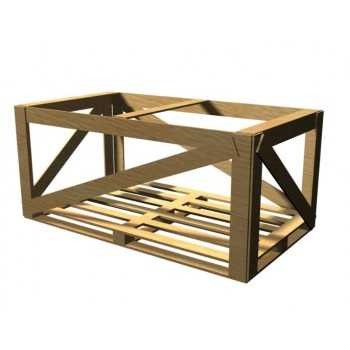

FOR THIS PRODUCT AND FOR ALL GLASS PRODUCTS WE SUGGEST ORDERING THE NECESSARY CAGE TO ENSURE SAFE TRANSPORT.
