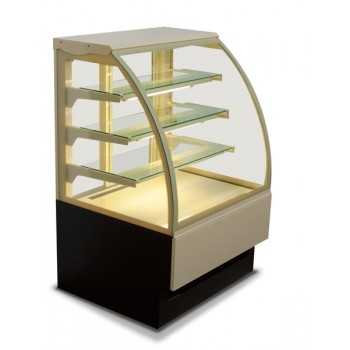

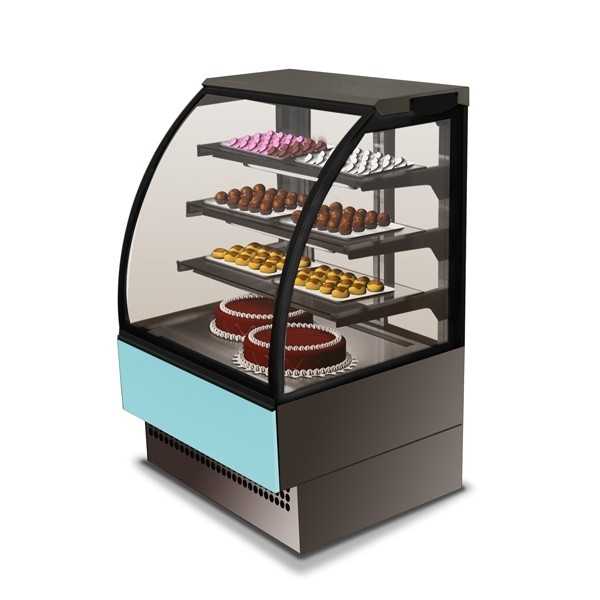

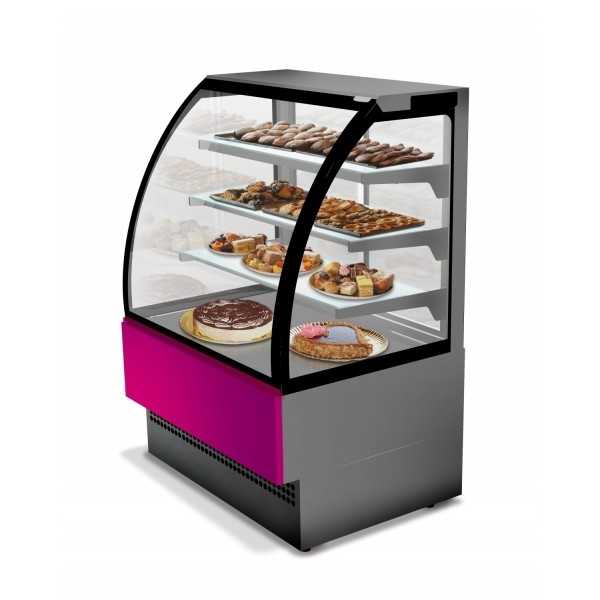

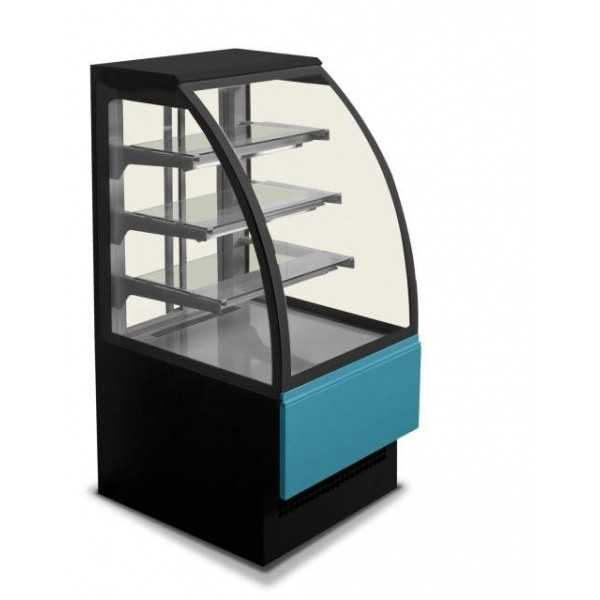

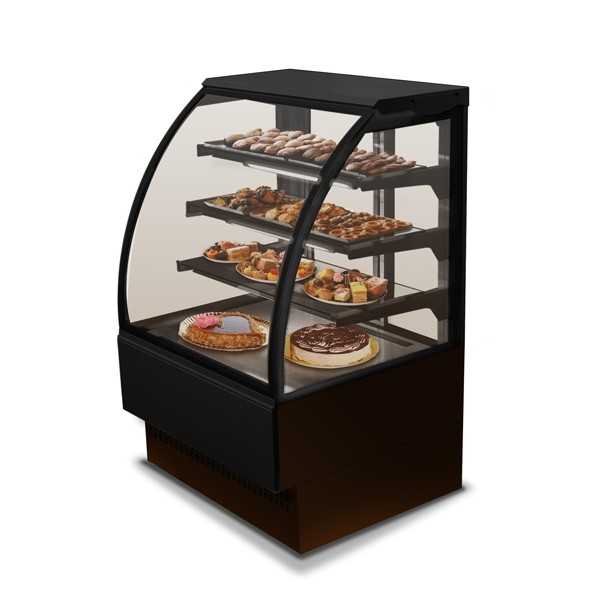

Serve over counter display fridge EVO, depth 78.5 cm, temperature +2/+4° C

Ref: RF_01995

Made in italy

1.299,00 € (price excluding 22% VAT)

€1,584.78 (price with 22% VAT included)

Refrigerated display case for the display and valorization of pastry products but also for the display of pre-packaged ready foods, sandwiches, cold dishes. Ideal showcase for bakery , pastry , delicatessen , cured meats and dairy products. With a simple and elegant design, this model represents an excellent solution to satisfy the different needs of customers, thanks to its flexibility in use and modularity. Can be ordered in the following lengths : L.60, L.90, L.120, L.150, L.180 and L.240 cm. Depth of display surface : 66 cm. Shelves Depth : 35 cm (lower shelf) - 30 cm (middle shelf) - 25 cm (upper shelf)

Length
Material

100% secure payments
account_circleSend to a friend > Information request
Serve over counter display fridge EVO, depth 78.5 cm, temperature +2/+4° C

Serve over counter display fridge EVO, depth 78.5 cm, temperature +2/+4° C


Refrigerated display case for the display and valorization of pastry products but also for the display of pre-packaged ready foods, sandwiches, cold dishes. Ideal showcase for bakery , pastry , delicatessen , cured meats and dairy products. With a simple and elegant design, this model represents an excellent solution to satisfy the different needs of customers, thanks to its flexibility in use and modularity. Can be ordered in the following lengths : L.60, L.90, L.120, L.150, L.180 and L.240 cm. Depth of display surface : 66 cm. Shelves Depth : 35 cm (lower shelf) - 30 cm (middle shelf) - 25 cm (upper shelf)

Send to a friend


I accept the terms of the privacy policy


Thanks to its well-sized system, it is ideal not only for displaying and enhancing pastry products but also for displaying pre-packaged ready foods, sandwiches, cold dishes, etc.
With a simple and elegant design, this model represents an excellent solution to satisfy the different needs of customers, thanks to its flexibility in use and modularity (available in lengths: 60-90-120-150-180-240 cm). The panoramic curved glass and the 3 refrigerated shelves, all equipped with standard lighting in addition to the upper one, offer great visibility of the products on display.
Front glass opening with safety system. Rear with double-glazed sliding doors with vertical seals.
Climate class 3 (Ambient temperature +25 °C; Relative humidity 60%)
EVO is available both with built-in motor and with provision for R452A valve for remote group.

Ideal showcase for: bakery , pastry shop , delicatessen , cured meats and dairy products.

Standard equipment:

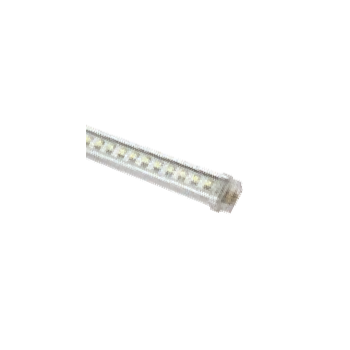

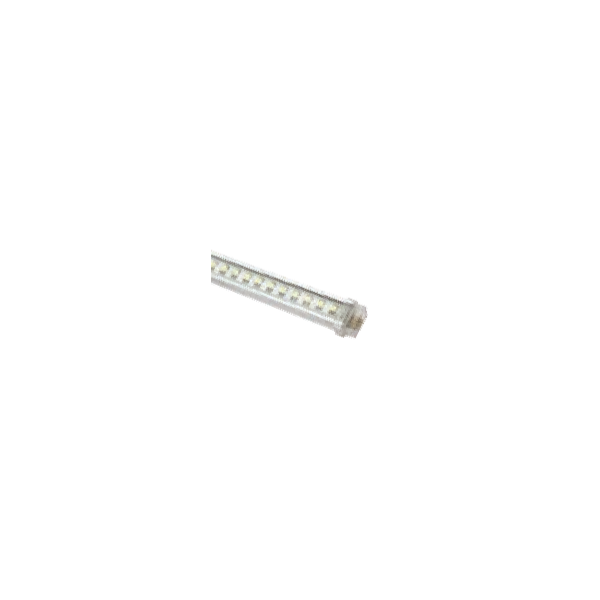

  • No. 3 height-adjustable glass shelves with standard LED lighting
  • Upper LED lighting
  • Electronic control panel
  • Automatic evaporation of condensation water.
  • Packaging in wooden cage


Accessories:

  • Wheel set


DATASHEET

EVO60


Dimensions : L.60 x D.78.5 x H.140 cm
Depth of display surface : 66 cm
Shelves Depth : 35 cm (lower shelf) - 30 cm (middle shelf) - 25 cm (upper shelf)
Exhibition surface area : 0.99 m2
Total Power Absorption : 400 W (ventilated display case with built-in group) - 90 W (ventilated display case with remote group)
Power Absorbed by Lighting : 84 W
Volume : 250 L
Gross Weight : 115 kg



EVO90


Dimensions : L.90 x D.78.5 x H.140 cm
Depth of display surface : 66 cm
Shelves Depth : 35 cm (lower shelf) - 30 cm (middle shelf) - 25 cm (upper shelf)
Exhibition surface area : 1.41 m2
Total Power Absorption : 400 W (ventilated display case with built-in group) - 123 W (ventilated display case with remote group)
Power Absorbed by Lighting : 112 W
Volume : 390 L
Gross Weight : 135 kg



EVO120


Dimensions : L.120 x D.78.5 x H.140 cm
Depth of display surface : 66 cm
Shelves Depth : 35 cm (lower shelf) - 30 cm (middle shelf) - 25 cm (upper shelf)
Exhibition surface area : 1.88 m2
Total Power Absorption : 687 W (ventilated display case with built-in group) - 134 W (ventilated display case with remote group)
Power Absorbed by Lighting : 112 W
Volume : 530 L
Gross Weight : 155 kg



EVO150


Dimensions : L.150 x D.78.5 x H.140 cm
Depth of display surface : 66 cm
Shelves Depth : 35 cm (lower shelf) - 30 cm (middle shelf) - 25 cm (upper shelf)
Exhibition surface area : 2.34 m2
Total Power Absorption : 717 W (ventilated display case with built-in group) - 134 W (ventilated display case with remote group)
Power Absorbed by Lighting : 112 W
Volume : 670 L
Gross Weight : 170 kg



EVO180


Dimensions : L.180 x D.78.5 x H.140 cm
Depth of display surface : 66 cm
Shelves Depth : 35 cm (lower shelf) - 30 cm (middle shelf) - 25 cm (upper shelf)
Exhibition surface area : 2.81 m2
Total Power Absorption : 754 W (ventilated display case with built-in group) - 173 W (ventilated display case with remote group)
Power Absorbed by Lighting : 140 W
Volume : 810 L
Gross Weight : 220 kg



EVO240


Dimensions : L.240 x D.78.5 x H.140 cm
Depth of display surface : 66 cm
Shelves Depth : 35 cm (lower shelf) - 30 cm (middle shelf) - 25 cm (upper shelf)
Exhibition surface area : 3.76 m2
Total Power Absorption : 1374 W (ventilated display case with built-in group) - 268 W (ventilated display case with remote group)
Power Absorbed by Lighting : 224 W
Volume : 1080 L
Gross Weight : 310 kg


RF_01995_56947

Data sheet

Made in Italy
Yes
Temperature
Refrigerated
Use
Deli products
Pastry
Glass
Curved
