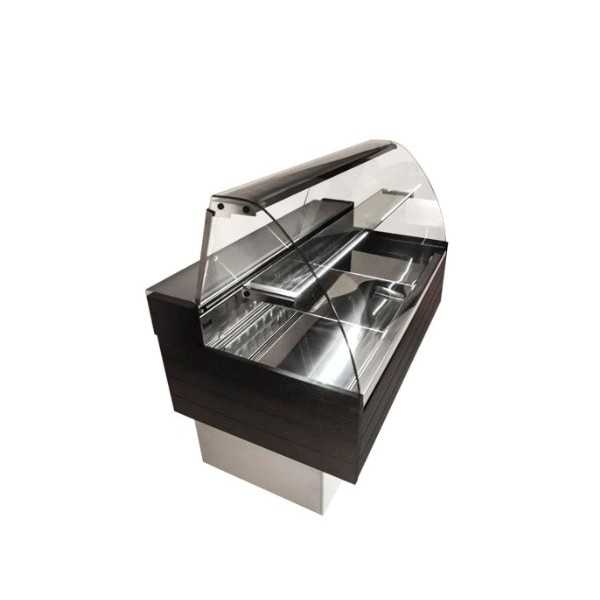

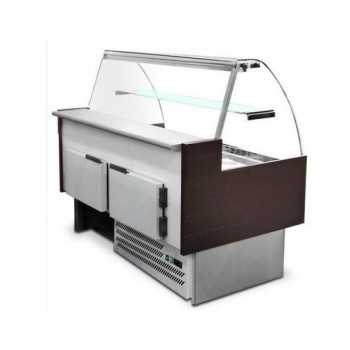

The elegance of the finishes and the design of the structure make the KIBUK refrigerated counter essential both in classic venues and in settings characterized by simple, clean lines.
CHARACTERISTICS :
• Ideal for placement in narrow spaces
• Compact size (depth of only 90 cm)
• “Made in Italy” technology, design and production
• Easy installation
• Low energy consumption
• Low environmental impact
• Non-toxic and CFC-free manufacturing materials
• Possibility of customizations on request
• Cash register available on request
STANDARD EQUIPMENT:
• Thermoformed and insulated sides (thickness 5 cm each) with tempered glass side
• Electronic control panel
• Refrigerated reserve at counters
• Ceiling light with neon lighting
(MIDDLE SHELF AND REAR SLIDING SLIDES NOT INCLUDED IN THE PRICE)
(DISPLAY CASES READY FOR DELIVERY COMPLETE WITH INTERMEDIATE SHELF, REAR SLIDING SLIDES AND WOODEN CAGE FOR TRANSPORT)
Ideal showcase for: pastry shops and delicatessens .
Standard front panel colours:
Optional front panel colours:
Shoulder colors:
INSERT IN THE NOTES , WHILE CONFIRMING THE ORDER, THE COLOR OF THE SHOWCASE YOU PREFER FROM THE POSSIBILITIES LISTED ABOVE. IF YOU DON'T CHOOSE A COLOR WE WILL DELIVER TO YOU THE FIRST AVAILABLE SHOWCASE.
DATASHEET
KIBUK 100
Dimensions: L.104 x D.90 x H.122.7 cm
Tanks: GN 1/1 x 2
Power Absorbed Lights : 1 x 18 W
Display Surface : 0.6 m2
Reserve volume : 120 litres
Number of branches : 1
Voltage : 230 V / 50 Hz
Gross Weight : 125 kg
KIBUK 150
Dimensions: L.152 x D.90 x H.122.7 cm
Tanks: GN 1/1 x 4
Power Absorbed Lights : 1 x 36 W
Display Surface : 0.83 m2
Reserve volume : 249 litres
Number of branches : 2
Voltage : 230 V / 50 Hz
Gross Weight : 150 kg
KIBUK 200
Dimensions: L.200 x D.90 x H.122.7 cm
Wells : GN1/1 x 5
Power Absorbed Lights : 1 x 58 W
Display Surface : 1.1 m2
Reserve volume : 332 litres
Number of branches : 2
Voltage : 230 V / 50 Hz
Gross Weight : 180 kg
KIBUK 250
Dimensions: L.248 x D.90 x H.122.7 cm
Wells : GN1/1 x 7
Power Absorbed Lights : 2 x 36 W
Display surface : 1.38 m2
Reserve volume : 415 litres
Number of branches : 3
Voltage : 230 V / 50 Hz
Gross Weight : 220 kg
KIBUK 300
Dimensions: L.296 x D.90 x H.122.7 cm
Wells : GN1/1 x 8
Power Absorbed Lights : 2 x 36 W
Display surface : 1.66 m2
Reserve volume : 498 litres
Number of branches : 3
Voltage : 230 V / 50 Hz
Gross Weight : 260 kg
FOR THIS PRODUCT AND FOR ALL SALINA - VULCANO - KIBUK PRODUCTS WE SUGGEST ORDERING THE NECESSARY CAGE TO ENSURE SAFE TRANSPORT.
