Heated serve over counter display ORLEANS

Ref: RF_01893

Made in italy

1.929,00 € (price excluding 22% VAT)

€2,353.38 (price with 22% VAT included)

Can be ordered in the following lengths : L.100, L.150, L.200 and L.250 cm Depth : 81 cm

Length

100% secure payments
account_circleSend to a friend > Information request
Heated serve over counter display ORLEANS

Heated serve over counter display ORLEANS


Can be ordered in the following lengths : L.100, L.150, L.200 and L.250 cm Depth : 81 cm

Send to a friend


I accept the terms of the privacy policy

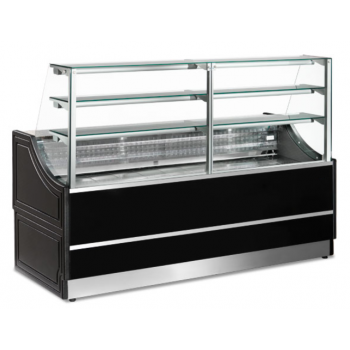

Display case suitable for small to medium surfaces, designed for the sale of various product categories.
The hot version is equipped with a heating system via resistance, with a thermostat for regulating the temperature between 30° and 90° C.

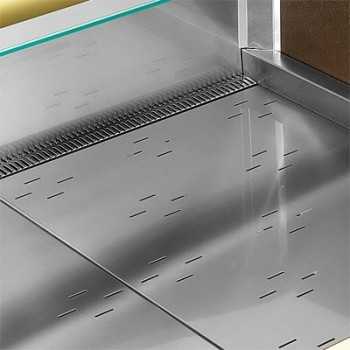

Stainless steel worktop. Thermoformed ABS side panels, 304 stainless steel display top, top lighting, control panel with electronic thermostat and pause defrosting, manual drain condensation tray. Intermediate glass with standard lighting, not refrigerated. All glass is tempered.
Different colors are available.

Ideal display case for: gastronomy and pastry shops.

Please insert the colour of the upper front panel, lower front panel and shoulders in the notes when ordering, choosing from the options.
UPPER FRONT PANEL

Standard colors

Optional colors


LOWER FRONT PANEL
GREY (standard)
SHOULDERS
GREY (standard)
BLACK (optional color)

Optional accessory: second non-refrigerated intermediate glass

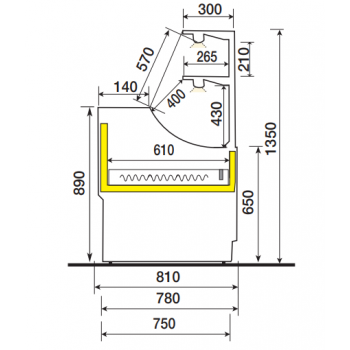

DATASHEET

L.100
Dimensions : L.100 x D.81 x H.135 cm
Operating Temperature : max 60 °C
Lighting : 2 x 18 W
Display surface depth : 61 cm
Exhibition area : 0.56 m2
Intermediate Glass Surface : 0.24 m2
Resistance : 1300 W

L.150
Dimensions : L.150 x D.81 x H.135 cm
Operating Temperature : max 60 °C
Lighting : 2 x 36 W
Display surface depth : 61 cm
Exhibition area : 0.95 m2
Intermediate Glass Surface : 0.37 m2
Resistance : 1700 W

L.200
Dimensions : L.200 x D.81 x H.135 cm
Operating Temperature : max 60 °C
Lighting : 2 x 58 W
Display surface depth : 61 cm
Exhibition area : 1.17 m2
Intermediate Glass Surface : 0.5 m2
Resistance : 1800 W

L.250
Dimensions : L.250 x D.81 x H.135 cm
Operating Temperature : max 60 °C
Lighting : 4 x 30 W
Display surface depth : 61 cm
Exhibition area : 1.48 m2
Intermediate Glass Surface : 0.63 m2
Resistance : 1800 W
RF_01893_56218

Data sheet

Made in Italy
Yes
Temperature
Heated
Glass
Straight
Dimensions (LxDxH cm)
100 x 81 x 135
150 x 81 x 135
200 x 81 x 135
250 x 81 x 135
Number of shelves
1
Exposure surface depth (cm)
61
Exhibition surface (m²)
0,56
0,95
1,17
1,48
Profondità mensola intermedia (cm)
26,5
