REFRIGERATED DISPLAY CASE FOR GASTRONOMY AND PASTRY - ORLEANS

REFRIGERATED CABINET FOR GASTRONOMY AND PASTRY - ORLEANS

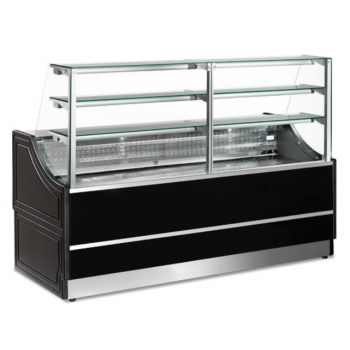

Deli and pastry serve over counter display fridge ORLEANS, depth 81 cm

Ref: RF_01698

Made in italy

2.219,00 € (price excluding 22% VAT)

€2,707.18 (price with 22% VAT included)

Can be ordered in the following lengths : L.100, L.150, L.200 and L.250 cm Depth : 81 cm

Available Options

Ask a Quote

100% secure payments

Send to a friend > Information request

Ask a Quote

Accessories

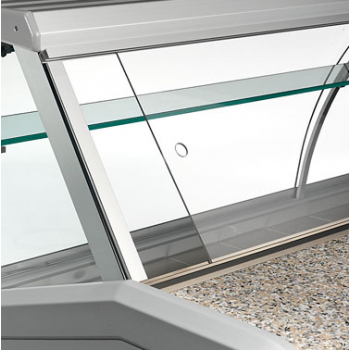

		CHIUSURA POSTERIORE PER VETRINA ORLEANS €159.00
		SECONDO VETRO INTERMEDIO NON REFRIGERATO CON ILLUMINAZIONE €339.00

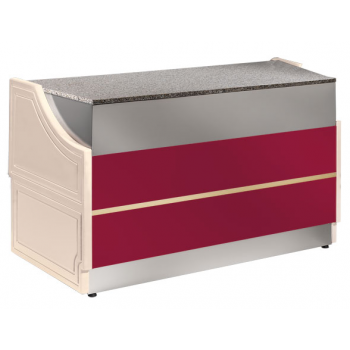

		TERMINALE CASSA PER VETRINA ORLEANS €949.00

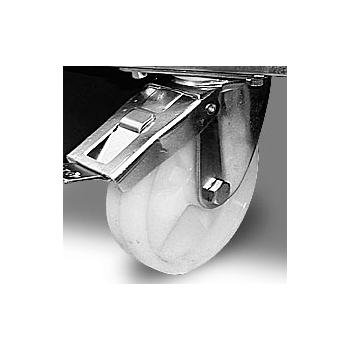

	Frame with wheels (2 with brakes, 2 normal). Complementary with refrigerated display cases. Designed for delicatessens, butchers, pastry shops and bakeries.	TELAIO CON RUOTE €299.00

Showcase suitable for small to medium surfaces, designed for the sale of various product categories.
Available in the static version with cell ideal for displaying fresh or packaged products: cured meats, dairy products, delicatessen, sandwiches.
Granite worktop, for the static and non-refrigerated versions; for the hot version steel worktop. Thermoformed ABS side panels, 304 stainless steel display surface, upper lighting, control panel with electronic thermostat and pause defrost, manual drain condensation tray. Intermediate glass with standard lighting, not refrigerated. All glass is tempered.

Enter the color of the upper, lower front panel and shoulders in the notes when ordering, choosing from the options.

TOP FRONT PANEL

Standard colors

Optional colours


LOWER FRONT PANEL
GREY
SHOULDERS
GRAY (standard)
BLACK (optional color)

DATASHEET

L.100

Dimensions : L.100 x D.81 x H.135 cm
Operating Temperature : 25 °C - RH 60% - +4 / +6 °C
Lighting : 2 x 18 W
Depth of display surface : 54 cm
Exhibition surface area : 0.62 m2
Intermediate Glass Surface : 0.24 m2
Cell capacity : 115 litres
Cooling capacity : 376 W
Watts Absorbed : 245 W

L.150

Dimensions : L.150 x D.81 x H.135 cm
Operating Temperature : 25 °C - RH 60% - +4 / +6 °C
Lighting : 2 x 36 W
Depth of display surface : 54 cm
Exhibition surface area : 0.95 m2
Intermediate Glass Surface : 0.37 m2
Cell capacity : 178 litres
Cooling capacity : 376 W
Watts Absorbed : 245 W

L.200

Dimensions : L.200 x D.81 x H.135 cm
Operating Temperature : 25 °C - RH 60% - +4 / +6 °C
Lighting : 2 x 58 W
Depth of display surface : 54 cm
Exhibition surface area : 1.29 m2
Intermediate Glass Surface : 0.5 m2
Cell capacity : 240 litres
Cooling capacity : 492 W
Watts Absorbed : 323 W

L.250

Dimensions : L.250 x D.81 x H.135 cm
Operating Temperature : 25 °C - RH 60% - +4 / +6 °C
Lighting : 4 x 30 W
Depth of display surface : 54 cm
Exhibition surface area : 1.62 m2
Intermediate Glass Surface : 0.63 m2
Cell capacity : 303 litres
Refrigeration Yield : 721 W
Watts Absorbed : 491 W

Reference RF_01698_47839

Data sheet

Made in Italy: Yes
Temperature: Refrigerated
Use: Deli products
Pastry
Glass: Straight
Dimensions (LxDxH cm): 100 x 81 x 135
200 x 81 x 135
250 x 81 x 135
300 x 81 x 135
Temperature (°C): +4 / +6
Electrical power (W): 245
323
491
Testing (°C/RH): +25 / 60 %
Travel fridge (W): 376
492
721
Exposure surface depth (cm): 54
Exhibition surface (m²): 0,62
0,95
1,29
1,62
Cell capacity (L): 115
178
240
303
Profondità mensola intermedia (cm): 26,5
