Ice cube machine

Ref: RF_00643

739,00 € (price excluding 22% VAT)

€901.58 (price with 22% VAT included)

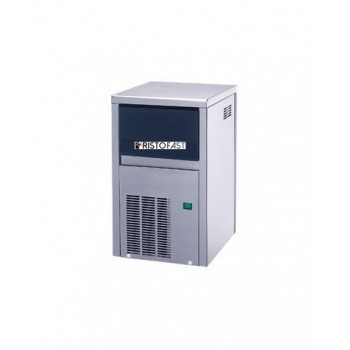

Professional ice cube machine. Daily production starting from 25 kg up to 380 kg. Ideal for bars, hotels, restaurants, canteens. This range of ice makers is available with air or water cooling variants.

Available Options

Ask a Quote

100% secure payments

Send to a friend > Information request

Ask a Quote

Accessories

		ADDOLCITORE ANTICALCARE €475.00
		FILTRO PER PRODUTTORI DI GHIACCIO €69.00
		SERBATOIO CON PENDENZA ANTERIORE €1,199.00
		CARRELLO €999.00

This range of ice makers is available with air or liquid cooling variants, choose the version best suited to your needs and communicate this at the time of purchase.

NB the daily ice production may vary depending on the version chosen

DATASHEET

Ice maker up to 25 kg / 24 h

Dimensions : L.35 x D.47.5 x H.59 cm
Cube size : 14 g (S)
Condensing system : Air - Water
Production : 22 kg/ 24 h (Air) - 25 kg/ 24 h (Water)
Tank : 6 kg
Maximum input power : 360 W
Refrigerant R404 : 300 Gr (Air) - 230 Gr (Water)

Ice maker up to 35 kg / 24 h

Dimensions : L.43.5 x D.60.5 x H.69.5 cm
Cube size : 22 g (M) and 34 g (L)
Condensing system : Air - Water
Production : 33 kg/ 24 h (Air) - 35 kg/ 24 h (Water)
Tank : 15 kg
Maximum input power : 400 W
Refrigerant R404 : 220 Gr (Air) - 210 Gr (Water)

Ice maker up to 45 kg / 24 h

Dimensions : L.43.5 x D.60.5 x H.69.5 cm
Cube size : 22 g (M) and 34 g (L)
Condensing system : Air - Water
Production : 42 kg/ 24 h (Air) - 44 kg/ 24 h (Water)
Tank : 15 kg
Maximum input power : 450 W
Refrigerant R404 : 225 Gr (Air) - 210 Gr (Water)

Ice maker up to 60 kg / 24 h

Dimensions : L.51.5 x D.64.5 x H.84 cm
Cube size : 22 g (M) and 34 g (L)
Condensing system : Air - Water
Production : 54 kg/ 24 h (Air) - 57 kg/ 24 h (Water)
Tank : 30 kg
Maximum input power : 460 W
Refrigerant R404 : 250 Gr (Air) - 220 Gr (Water)

Ice maker up to 80 kg / 24 h

Dimensions : L.64.5 x D.64.5 x H.87 cm
Cube size : 22 g (M) and 34 g (L)
Condensing system : Air - Water
Production : 75 kg/ 24 h (Air) - 81 kg/ 24 h (Water)
Tank : 40 kg
Maximum input power : 720 W
Refrigerant R404 : 280 Gr (Air) - 300 Gr (Water)

Ice maker up to 135 kg / 24 h

Dimensions : L.93 x D.56.5 x H.91.5 cm
Cube size : 22 g (M) and 34 g (L)
Condensing system : Air - Water
Production : 135 kg/ 24 h (Air) - 137 kg/ 24 h (Water)
Tank : 60 kg
Maximum input power : 1150 W
Refrigerant R404 : 500 Gr (Air) - 340 Gr (Water)

Ice maker up to 150 kg / 24 h

Dimensions : L.77.5 x D.62.5 x H.80.5 cm
Cube size : 22 g (M) and 34 g (L)
Condensing system : Air - Water
Production : 150 kg/ 24 h (Air) - 153 kg/ 24 h (Water)
Tank : modular
Maximum input power : 1500 W
Refrigerant R404 : 700 Gr (Air) - 750 Gr (Water)

Ice maker up to 400 kg / 24 h

Dimensions : L.132.1 x D.63.8 x H.97.8 cm
Cube size : 22 g (M) and 34 g (L)
Condensing system : Air - Water
Production : 380 kg/ 24 h
Tank : modular
Maximum input power : 3300 W
Refrigerant R404 : 1900 Gr

SUPPLEMENT
Shredder

Dimensions : L.18 x D.33 x H.32 cm
Capacity : 3 kg/min
Tank : 1 kg
Maximum input power : 150W

NB: FOR THE 150 KG, 400 KG MODELS IT IS NECESSARY TO COMBINE A MODULAR TANK. Choose the one suitable for your manufacturer by clicking on the link below: http://ristofast.com/serbatoio-con-pendenza-anteriore.html

Technical Characteristics / Operation Limits

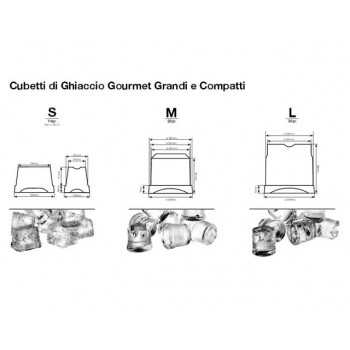

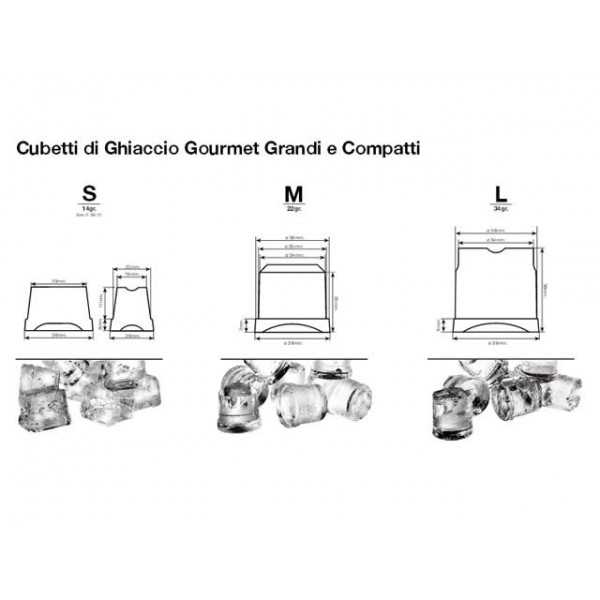

Ice Cube	M 22gr. L 34g. IT SS 25 produces S size cubes, 14g.
Scocca	AISI 304 stainless steel
Injection System	With special semi-elastic injectors designed and patented by ICE TECH to prevent the formation of limescale.
Electromechanical controls	The control of the machine is carried out by timer and thermostat. Simple, easy to understand and maintenance. High reliability and low cost of spare parts.
Switch	External On/Off switch
Tropicalized Machines	T-Class
Range	Air temperature: 5 – 40ºC Water temperature: 5 – 35ºC Pressure: 0.7 – 6 bar
Ice Production Capacity	Kg/24h at Room temperature 15ºC, Water temperature 10ºC
Certification	ISO 9001, CE
Others	R404 refrigerant 3/4" water inlet connection Exhaust gas connection 20mm. Single-phase power 220V–50Hz. / Optional: 220V-60Hz.

General characteristics

The SS series were designed for the hospitality sector: bars, restaurants, pubs... incorporating innovative features.
The SS large and compact gourmet ice cube is the most desired cube by both professionals and consumers. Ideal to be
used with soft drinks and liqueurs.
SS ice cubes melt very slowly, allowing customers to enjoy their chilled drinks for longer.
High quality AISI 304 stainless steel exterior finish with integrated door enhancing the clean style of the machine.
With exceptional insulation in HCFC-free injected polyurethane foam, the SS machine will maintain the compactness and quality of the
ice produced, more than any other machine.
All parts in contact with water have been designed to minimize their friction and to guarantee maximum surface tension,
significantly reducing the sound level.

THE MANUFACTURER recommends using a filter or a water softener device. Reducing or eliminating calcium from water can significantly improve the life and efficiency of your machinery by preventing calcium build-up in kettles, hot water coils and taps. It also prevents the formation of white marks on glasses and plates. Any damage caused by limescale deposits is not covered by the warranty
