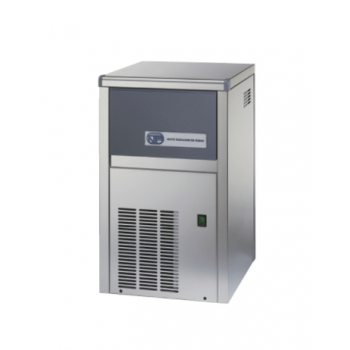

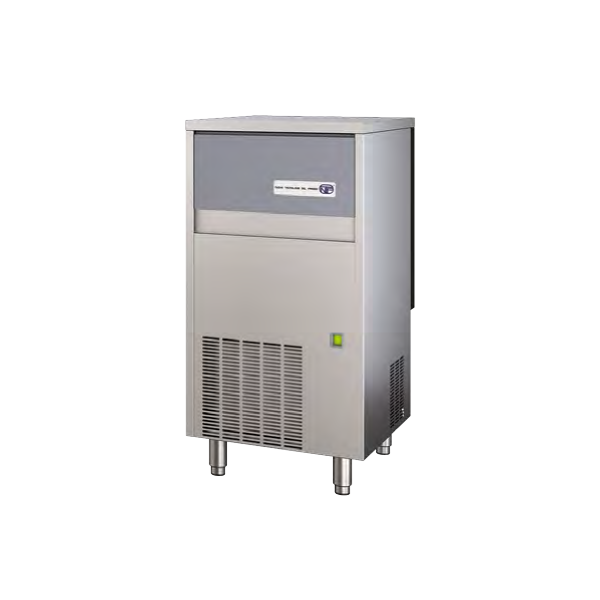

Ice cube machine
Ref: RF_02432
Made in italy
759,00 € (price excluding 22% VAT)
€925.98 (price with 22% VAT included)
Professional truncated cone ice cube machine. Daily production starting from 22 kg up to 158 kg. Ideal for bars, hotels, restaurants, canteens. This range of ice makers is available with air or water cooling variants.
Cubes in the shape of a truncated cone slightly flattened on the sides. 14, 17, 32, 41 or 60 grams depending on your needs. Crystalline and compact, this type of ice enhances drinks without weakening their taste. Suitable for any type of glass.
All ice makers in this range work with low environmental impact R290 gas and are also equipped as standard with an advanced self-cleaning system.
The version with drainage pump is also available, only for air-cooled models with daily production of 35kg or more.
Fields of application
Installation conditions
Installation: internal
Ambient temperature: min. +10° C / max +43° C
Water temperature: min. +3° C / max +32° C
Voltage: min -10% / max +10%
Inlet water pressure: min 1 bar - max 6 bar
All technical data are to be considered valid under the following conditions :
THE MANUFACTURER recommends using a filter or a water softener device. Reducing or eliminating calcium from water can significantly improve the life and efficiency of your machinery by preventing calcium build-up in kettles, hot water coils and taps. It also prevents the formation of white marks on glasses and plates. Any damage caused by limescale deposits is not covered by the warranty
The version with drainage pump is also available, only for air-cooled models with daily production of 35kg or more.
Fields of application
Installation conditions
Installation: internal
Ambient temperature: min. +10° C / max +43° C
Water temperature: min. +3° C / max +32° C
Voltage: min -10% / max +10%
Inlet water pressure: min 1 bar - max 6 bar
All technical data are to be considered valid under the following conditions :
THE MANUFACTURER recommends using a filter or a water softener device. Reducing or eliminating calcium from water can significantly improve the life and efficiency of your machinery by preventing calcium build-up in kettles, hot water coils and taps. It also prevents the formation of white marks on glasses and plates. Any damage caused by limescale deposits is not covered by the warranty
Ice maker up to 22 kg - Spray system
CHARACTERISTICS
Full, crystalline and compact cube. Under counter model. External structure in AISI 304 stainless steel (in ABS on request), Scotch Brite finish. Air or water condensation. Electromechanical operating system. Equipped with ON-OFF switch. Insulated door, concealed opening. Washing system. Inspectable anti-scale filter. Simplified cleaning thanks to the rounded surfaces. HCFC-free internal container insulation, RoHS directive compliance. Tropical class model +43°C.
DATA SHEET
Daily Production
Technical data
Full, crystalline and compact cube. Under counter model. External structure in AISI 304 stainless steel (in ABS on request), Scotch Brite finish. Air or water condensation. Electromechanical operating system. Equipped with ON-OFF switch. Insulated door, concealed opening. Washing system. Inspectable anti-scale filter. Simplified cleaning thanks to the rounded surfaces. HCFC-free internal container insulation, RoHS directive compliance. Tropical class model +43°C.
DATA SHEET
Daily Production
- Air temperature 10°C / water 7°C: 22 kg
- Air temperature 21°C / water 15°C: 20 kg
- Air temperature 32°C / water 21°C: 16 kg
Technical data
- Dimensions: L.35.5 x D.40.4 x D.59 cm
- Container capacity: 4 kg
- Condensation: Water - Air
- Cube dimensions: L.3 x D.2.6 x H.2.9 cm -14 grams
- Cube type: 14 g
- Refrigerant: R290
- Standard voltage: 220-240 V - 50 Hz (special voltages on request)
- Electrical consumption: 260 W
- Fuse: 10 A
- Water consumption: 4 Lt /kg (air condensation) - 25 Lt /kg (water condensation)
- Net weight: 27.5 kg
Connections
1) Water inlet: L.8.8 cm - H.18.4 cm - Diameter 3/4"
2) Water drain: L.4.5 cm - H.13.8 cm - Diameter 2.4 cm
3) Electrical connection: L.4.1 cm - H.7.3 cm
Ice maker up to 30 kg - Spray system
CHARACTERISTICS
Full, crystalline and compact cube. Under counter model. External structure in AISI 304 stainless steel , Scotch Brite finish. Side grilles for better ventilation, removable side panels. Air or water condensation. Electromechanical operating system. Equipped with ON-OFF switch. Retractable insulated door. Washing system. Protective external filter, removable, easily cleanable. Simplified cleaning thanks to the rounded surfaces. HCFC-free internal container insulation, RoHS directive compliance. Tropical class model +43°C.
DATA SHEET
Daily Production
Technical data
Full, crystalline and compact cube. Under counter model. External structure in AISI 304 stainless steel , Scotch Brite finish. Side grilles for better ventilation, removable side panels. Air or water condensation. Electromechanical operating system. Equipped with ON-OFF switch. Retractable insulated door. Washing system. Protective external filter, removable, easily cleanable. Simplified cleaning thanks to the rounded surfaces. HCFC-free internal container insulation, RoHS directive compliance. Tropical class model +43°C.
DATA SHEET
Daily Production
- Air temperature 10°C / water 7°C: 30 kg
- Air temperature 21°C / water 15°C: 26 kg
- Air temperature 32°C / water 21°C: 20 kg
Technical data
- Dimensions: L.38.7 x D.46.5 x D.60.7 cm
- Container capacity: 6 kg
- Condensation: Water - Air
- Cube dimensions: L.3.5 x D.3.1 x H.3.1 cm -17 grams
- Cube type: 17 g
- Refrigerant: R290
- Standard voltage: 220-240 V - 50 Hz (special voltages on request)
- Electrical consumption: 245 W
- Fuse: 10 A
- Water consumption: 3 Lt /kg (air condensation) - 12 Lt /kg (water condensation)
- Net weight: 39 kg
Connections
1) Water inlet: L.12.9 cm - H.13.7 cm - Diameter 3/4"
2) Water drain: L.5.6 cm - H.13.7 cm - Diameter 2.4 cm
3) Electrical connection: L.8.9 cm - H.18 cm
Ice maker up to 32 kg - Spray system
CHARACTERISTICS
Full, crystalline and compact cube. Under counter model. External structure in AISI 304 stainless steel , Scotch Brite finish. Side grilles for better ventilation, removable side panels. Air or water condensation. Electromechanical operating system. Equipped with ON-OFF switch. Retractable insulated door. Washing system. Protective external filter, removable, easily cleanable. Simplified cleaning thanks to the rounded surfaces. HCFC-free internal container insulation, RoHS directive compliance. Tropical class model +43°C.
DATA SHEET
Daily Production
- Air temperature 10°C / water 7°C: 32 kg
- Air temperature 21°C / water 15°C: 29 kg
- Air temperature 32°C / water 21°C: 21 kg
Technical data
- Dimensions: L.38.7 x D.46.5 x D.68.7 cm
- Container capacity: 9 kg
- Condensation: Water - Air
- Cube dimensions: L.3.5 x D.3.1 x H.3.1 cm -17 grams
- Cube type: 17 g
- Refrigerant: R290
- Standard voltage: 220-240 V - 50 Hz (special voltages on request)
- Electrical consumption: 290 W
- Fuse: 10 A
- Water consumption: 3 Lt /kg (air condensation) - 12 Lt /kg (water condensation)
- Net weight: 38 kg
Connections
1) Water inlet: L.12.9 cm - H.13.7 cm - Diameter 3/4"
2) Water drain: L.5.6 cm - H.13.7 cm - Diameter 2.4 cm
3) Electrical connection: L.8.9 cm - H.18 cm
Ice maker up to 40 kg - Spray system
CHARACTERISTICS
Full, crystalline and compact cube. Under counter model. External structure in AISI 304 stainless steel , Scotch Brite finish. Side grilles for better ventilation, removable side panels. Adjustable stainless steel feet. Air or water condensation. Electromechanical operating system. Equipped with ON-OFF switch. Retractable insulated door. Washing system. Protective external filter, removable, easily cleanable. Simplified cleaning thanks to the rounded surfaces. HCFC-free internal container insulation, RoHS directive compliance. Tropical class model +43°C.
DATA SHEET
Daily Production
- Air temperature 10°C / water 7°C: 40 kg
- Air temperature 21°C / water 15°C: 35 kg
- Air temperature 32°C / water 21°C: 27 kg
Technical data
- Dimensions: L.49.7 x D.59.2 x D.68.7 cm
- Container capacity: 16 kg
- Condensation: Water - Air
- Cube dimensions: L.3.5 x D.3.1 x H.3.1 cm -17 grams
- Cube type: 17 g
- Refrigerant: R290
- Standard voltage: 220-240 V - 50 Hz (special voltages on request)
- Electrical consumption: 340 W
- Fuse: 10 A
- Water consumption: 3 Lt /kg (air condensation) - 13 Lt /kg (water condensation)
- Net weight: 48 kg
Connections
1) Water inlet: L.12.9 cm - H.13.2 cm - Diameter 3/4"
2) Water drain: L.5.6 cm - H.15.4 cm - Diameter 2.4 cm
3) Electrical connection: L.9.4 cm - H.20.2 cm
Ice maker up to 44 kg - Spray system
CHARACTERISTICS
Full, crystalline and compact cube. Under counter model. External structure in AISI 304 stainless steel , Scotch Brite finish. Side grilles for better ventilation, removable side panels. Adjustable stainless steel feet. Air or water condensation. Electromechanical operating system. Equipped with ON-OFF switch. Retractable insulated door. Washing system. Protective external filter, removable, easily cleanable. Simplified cleaning thanks to the rounded surfaces. HCFC-free internal container insulation, RoHS directive compliance. Tropical class model +43°C.
DATA SHEET
Daily Production
- Air temperature 10°C / water 7°C: 44 kg
- Air temperature 21°C / water 15°C: 38 kg
- Air temperature 32°C / water 21°C: 29 kg
Technical data
- Dimensions: L.49.7 x D.59.2 x D.79.7 cm
- Container capacity: 25 kg
- Condensation: Water - Air
- Cube dimensions: L.3.5 x D.3.1 x H.3.1 cm -17 grams
- Refrigerant: R290
- Standard voltage: 220-240 V - 50 Hz (special voltages on request)
- Electrical consumption: 340 W
- Fuse: 10 A
- Water consumption: 3 Lt /kg (air condensation) - 13 Lt /kg (water condensation)
- Net weight: 52 kg
Connections
1) Water inlet: L.12.9 cm - H.13.2 cm - Diameter 3/4"
2) Water drain: L.5.6 cm - H.15.4 cm - Diameter 2.4 cm
3) Electrical connection: L.9.4 cm - H.20.2 cm
Ice maker up to 47 kg - Spray system
CHARACTERISTICS
Full, crystalline and compact cube. Under counter model. External structure in AISI 304 stainless steel , Scotch Brite finish. Side grilles for better ventilation, removable side panels. Adjustable stainless steel feet. Air or water condensation. Electromechanical operating system. Equipped with ON-OFF switch. Retractable insulated door. Washing system. Protective external filter, removable, easily cleanable. Simplified cleaning thanks to the rounded surfaces. HCFC-free internal container insulation, RoHS directive compliance. Tropical class model +43°C.
DATA SHEET
Daily Production
- Air temperature 10°C / water 7°C: 47 kg
- Air temperature 21°C / water 15°C: 45 kg
- Air temperature 32°C / water 21°C: 38 kg
Technical data
- Dimensions: L.49.7 x D.59.2 x D.88.7 cm
- Container capacity: 25 kg
- Condensation: Water - Air
- Cube dimensions: L.3.5 x D.3.1 x H.3.1 cm -17 grams
- Refrigerant: R290
- Standard voltage: 220-240 V - 50 Hz (special voltages on request)
- Electrical consumption: 460 W
- Fuse: 10 A
- Water consumption: 4 Lt /kg (air condensation) - 15 Lt /kg (water condensation)
- Net weight: 55 kg
Connections
1) Water inlet: L.12.9 cm - H.13.2 cm - Diameter 3/4"
2) Water drain: L.5.6 cm - H.15.4 cm - Diameter 2.4 cm
3) Electrical connection: L.9.4 cm - H.20.2 cm
Ice maker up to 76 kg - Spray system
CHARACTERISTICS
Full, crystalline and compact cube. External structure in AISI 304 stainless steel , Scotch Brite finish. Side grilles for better ventilation, removable side panels. Adjustable stainless steel feet. Air or water condensation. Electromechanical operating system. Equipped with ON-OFF switch. Retractable insulated door. Washing system. Protective external filter, removable, easily cleanable. Simplified cleaning thanks to the rounded surfaces. HCFC-free internal container insulation, RoHS directive compliance. Tropical class model +43°C.
DATA SHEET
Daily Production
- Air temperature 10°C / water 7°C: 76 kg
- Air temperature 21°C / water 15°C: 70 kg
- Air temperature 32°C / water 21°C: 62 kg
Technical data
- Dimensions: L.73.5 x D.60.3 x D.90.7 cm
- Container capacity: 40 kg
- Condensation: Water - Air
- Cube dimensions: L.3.5 x D.3.1 x H.3.1 cm -17 grams
- Refrigerant: R290
- Standard voltage: 220-240 V - 50 Hz (special voltages on request)
- Electrical consumption: 590 W
- Fuse: 10 A
- Water consumption: 4 Lt /kg (air condensation) - 16 Lt /kg (water condensation)
- Net weight: 67 kg
Connections
1) Water inlet: L.12.6 cm - H.18 cm - Diameter 3/4"
2) Water drain: L.6.1 cm - H.24.6 cm - Diameter 2.4 cm
3) Electrical connection: L.12.6 cm - H.28 cm
Ice maker up to 78 kg - Spray system
CHARACTERISTICS
Full, crystalline and compact cube. External structure in AISI 304 stainless steel , Scotch Brite finish. Side grilles for better ventilation, removable side panels. Adjustable stainless steel feet. Air or water condensation. Electromechanical operating system. Equipped with ON-OFF switch. Retractable insulated door. Washing system. Protective external filter, removable, easily cleanable. Simplified cleaning thanks to the rounded surfaces. HCFC-free internal container insulation, RoHS directive compliance. Tropical class model +43°C.
DATA SHEET
Daily Production
- Air temperature 10°C / water 7°C: 78 kg
- Air temperature 21°C / water 15°C: 75 kg
- Air temperature 32°C / water 21°C: 64 kg
Technical data
- Dimensions: L.73.5 x D.60.3 x D.90.7 cm
- Container capacity: 40 kg
- Condensation: Water - Air
- Cube dimensions: L.3.5 x D.3.1 x H.3.1 cm -17 grams
- Refrigerant: R290
- Standard voltage: 220-240 V - 50 Hz (special voltages on request)
- Electrical consumption: 700 W
- Fuse: 10 A
- Water consumption: 2.5 Lt /kg (air condensation) - 14 Lt /kg (water condensation)
- Net weight: 71 kg
Connections
1) Water inlet: L.12.6 cm - H.18 cm - Diameter 3/4"
2) Water drain: L.6.1 cm - H.24.6 cm - Diameter 2.4 cm
3) Electrical connection: L.12.6 cm - H.28 cm
Ice maker up to 95 kg - Spray system
CHARACTERISTICS
Full, crystalline and compact cube. External structure in AISI 304 stainless steel , Scotch Brite finish. Side grilles for better ventilation, removable side panels. Adjustable stainless steel feet. Air or water condensation. Electromechanical operating system. Equipped with ON-OFF switch. Retractable insulated door. Washing system. Protective external filter, removable, easily cleanable. Simplified cleaning thanks to the rounded surfaces. HCFC-free internal container insulation, RoHS directive compliance. Tropical class model +43°C.
DATA SHEET
Daily Production
- Air temperature 10°C / water 7°C: 95 kg
- Air temperature 21°C / water 15°C: 93 kg
- Air temperature 32°C / water 21°C: 80 kg
Technical data
- Dimensions: L.73.5 x D.60.3 x D.100.7 cm
- Container capacity: 60 kg
- Condensation: Water - Air
- Cube dimensions: L.3.5 x D.3.1 x H.3.1 cm -17 grams
- Refrigerant: R290
- Standard voltage: 220-240 V - 50 Hz (special voltages on request)
- Electrical consumption: 890 W
- Fuse: 10 A
- Water consumption: 3 Lt /kg (air condensation) - 16 Lt /kg (water condensation)
- Net weight: 74 kg
RF_02432_49241
Data sheet
- Made in Italy
- Yes
- Ice shape
- into cubes
Professional truncated cone ice cube machine. Daily production starting from 22 kg up to 158 kg. Ideal for bars, hotels, restaurants, canteens. This range of ice makers is available with air or water cooling variants.
