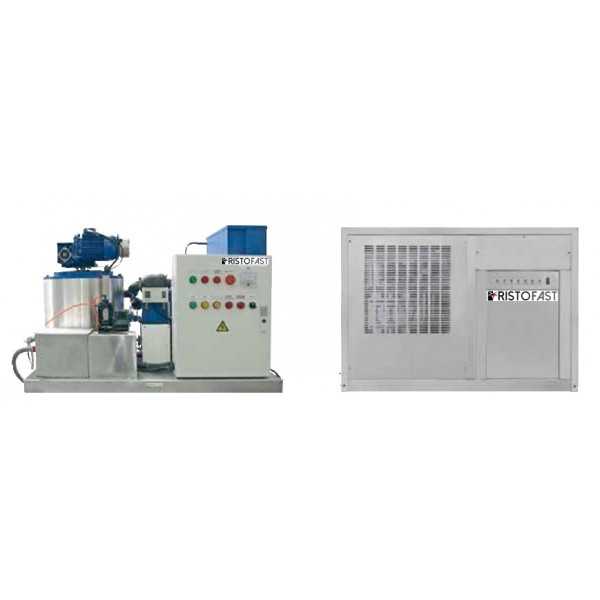

Flake ice machine
Ref: RF_00649
8.509,00 € (price excluding 22% VAT)
€10,380.98 (price with 22% VAT included)
Manufacturer, maker for daily ice production from 400 kg up to 10,000 kg. Flat flake ice is specific for fishmongers and in the medical field.
Accessories
|
ADDOLCITORE ANTICALCARE
€475.00 |
|
|
FILTRO PER PRODUTTORI DI GHIACCIO
€69.00 |
|
|
CARRELLO
€999.00 |
DATASHEET
Ice maker up to 400 kg / 24 h
Dimensions : L.110 x D.70 x H.76 cm
Production : 400 kg/ 24 h
Maximum input power : 1600 W
Ice outlet : Ø 32.6 cm
Weight : 160 kg
Ice maker up to 600 kg / 24 h
Dimensions : L.125 x D.75 x H.83.5 cm
Production : 600 kg/ 24 h
Maximum input power : 3300 W
Ice outlet : Ø 32.6 cm
Weight : 290 kg
Ice maker up to 1000 kg / 24 h
Dimensions : L.149.5 x D.110.8 x H.161.1 cm
Production : 1000 kg/ 24 h
Maximum input power : 3400 W
Ice outlet : Ø 48 cm
Weight : 331 kg
Ice maker up to 1500 kg / 24 h
Dimensions : L.149.5 x D.161.3 x H.158.9 cm
Production : 1500 kg/ 24 h
Maximum input power : 6640 W
Ice outlet : Ø 48 cm
Weight : 508 kg
Ice maker up to 2000 kg / 24 h
Dimensions : L.149.5 x D.161.3 x H.158.9 cm
Production : 2000 kg/ 24 h
Maximum input power : 7500 W
Ice outlet : Ø 48 cm
Weight : 513 kg
Ice maker up to 3000 kg / 24 h
Dimensions : L.260 x D.115 x H.148 cm
Production : 3000 kg/ 24 h
Maximum input power : 10500 W
Ice outlet : Ø 48 cm
Weight : 550 kg
Ice maker up to 5000 kg / 24 h
Dimensions : L.370.5 x D.121 x H.146.5 cm
Production : 5000 kg/ 24 h
Maximum input power : 20000 W
Ice outlet : Ø 90 cm
Weight : 1341 kg
Ice maker up to 10000 kg / 24 h
Dimensions : L.557.5 x D.130 x H.192 cm
Production : 10000 kg/ 24 h
Maximum input power : 32000 W
Ice outlet : Ø 90 cm
Weight : 1950 kg
NB: FOR ALL MODELS IT IS NECESSARY TO COMBINE A MODULAR TANK. Choose the one suitable for your manufacturer by clicking on the link below: http://ristofast.com/serbatoio-con-pendenza-anteriore.html
Technical Characteristics / Operation Limits
| Ice | Very cold and dry flat flake ice comes out of the machine at an average temperature of -7°C, with a thickness of approximately 1.5 mm. |
| Vertical Evaporator Cylindrical |
Vertical cylindrical evaporator, made of stainless steel, insulated to avoid performance losses. Cylindrical The material used inside is nickel. An internal rotating free spindle cuts the thin layer of ice formed on the evaporator wall. |
| Ecological | 100% water is used to make ice. The unfrozen water collects and recirculates back to the beginning of distribution. |
| Range | Air temperature: 5 – 40ºC Water temperature: 5 – 40ºC Pressure: 1.5 – 5 bar |
| Ice Production Capacity | Kg/24h at Room temperature 15ºC, Water temperature 10ºC |
| Components Included | The machine is already ready to produce ice directly when it is turned on. |
| Optional Accessories | Frost pump, ice chutes, external ON/OFF stop switch are not included in the machine. |
| Certification | ISO 9001, CE |
| Others | R404 refrigerant Evaporation temperature -22ºC Water inlet 3/4” GAS Three-phase 380V-50/60Hz. |
General characteristics
The machines produce cold, dry flat flake ice.
The ice has a very pleasant appearance, the flat flakes are overlapping and slide with each other in such a way that they have a cooling capacity for a long time.
Its applications are very diverse: fishing industry, sea ports, wholesale fish industries and markets, supermarkets, fishmongers, butchers, bakeries, pastry shops, retail markets, construction....
The cars they are compact, the motor and the evaporator are positioned in the same casing and therefore the user installation is
simple and fast.
They can also be supplied only with the evaporator to be connected to a remote unit.
THE MANUFACTURER recommends using a filter or a water softener device. Reducing or eliminating calcium from water can significantly improve the life and efficiency of your machinery by preventing calcium build-up in kettles, hot water coils and taps. It also prevents the formation of white marks on glasses and plates. Any damage caused by limescale deposits is not covered by the warranty
RF_00649_45611
Data sheet
- Use
- Fish
- Ice shape
- flakes
Manufacturer, maker for daily ice production from 400 kg up to 10,000 kg. Flat flake ice is specific for fishmongers and in the medical field.
