EMPTY CUBIC ICE MAKER - STAINLESS STEEL BODY

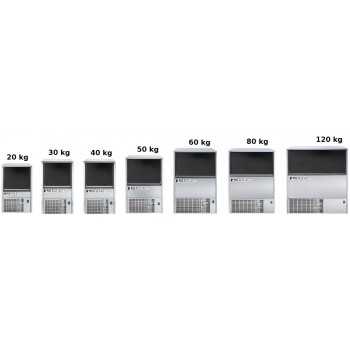

Hollow ice cube machine PS series

Ref: RF_00645

919,00 € (price excluding 22% VAT)

€1,121.18 (price with 22% VAT included)

Professional ice cube machine. Daily production starting from 20 kg up to 130 kg. Ideal for bars, hotels, restaurants, canteens. This range of ice makers is available with air or water cooling variants.

Condensation

Air
Water

Daily production

Ask a Quote

100% secure payments

Send to a friend > Information request

Ask a Quote

Accessories

		ADDOLCITORE ANTICALCARE €475.00
		FILTRO PER PRODUTTORI DI GHIACCIO €69.00
		CARRELLO €999.00

This range of ice makers is available with air or liquid cooling variants, choose the version best suited to your needs and communicate this at the time of purchase.

NB the daily ice production may vary depending on the version chosen

DATASHEET

Ice maker up to 24 kg / 24 h

Dimensions : L.40.1 x D.50.6 x H.64.3 cm
Condensing system : Air - Water
Production : 22 kg/ 24 h (Air) - 24 kg/ 24 h (Water)
Tank : 6 kg
Maximum input power : 287 W
Refrigerant R404 : 260 Gr (Air) - 190 Gr (Water)

Ice maker up to 33 kg / 24 h

Dimensions : L.40.1 x D.50.6 x H.69.8 cm
Condensing system : Air - Water
Production : 31 kg/ 24 h (Air) - 33 kg/ 24 h (Water)
Tank : 12 kg
Maximum input power : 293 W
Refrigerant R404 : 265 Gr (Air) - 195 Gr (Water)

Ice maker up to 40 kg / 24 h

Dimensions : L.40.1 x D.50.6 x H.69.8 cm
Condensing system : Air - Water
Production : 38 kg/ 24 h (Air) - 40 kg/ 24 h (Water)
Tank : 12 kg
Maximum input power : 421 W
Refrigerant R404 : 270 Gr (Air) - 210 Gr (Water)

Ice maker up to 51 kg / 24 h

Dimensions : L.51.3 x D.55.7 x H.81.1 cm
Condensing system : Air - Water
Production : 48 kg/ 24 h (Air) - 51 kg/ 24 h (Water)
Tank : 25 kg
Maximum input power : 550 W
Refrigerant R404 : 270 Gr (Air) - 290 Gr (Water)

Ice maker up to 60 kg / 24 h

Dimensions : L.59.3 x D.55.7 x H.93.4 cm
Condensing system : Air - Water
Production : 55 kg/ 24 h (Air) - 60 kg/ 24 h (Water)
Tank : 30 kg
Maximum input power : 650 W
Refrigerant R404 : 390 Gr (Air) - 370 Gr (Water)

Ice maker up to 81 kg / 24 h

Dimensions : L.67.3 x D.55.7 x H.98.4 cm
Condensing system : Air - Water
Production : 75 kg/ 24 h (Air) - 81 kg/ 24 h (Water)
Tank : 37 kg
Maximum input power : 775 W
Refrigerant R404 : 380 Gr (Air) - 360 Gr (Water)

Ice maker up to 130 kg / 24 h

Dimensions : L.84.3 x D.55.7 x H.98.4 cm
Condensing system : Air - Water
Production : 122 kg/ 24 h (Air) - 130 kg/ 24 h (Water)
Tank : 50 kg
Maximum input power : 800 W
Refrigerant R404 : 425 Gr (Air) - 405 Gr (Water)

Technical Characteristics / Operation Limits

Ice Cube	20g. adjustable, soft and long lasting.
Scocca	AISI 304 stainless steel
Injection System	Vane system. The machine is not affected by low quality water or lime. Without pump and injectors.
Electromechanical controls	The control of the machine is carried out by timer and thermostat. Simple, easy to understand and maintenance. High reliability and low cost of spare parts.
Switch	It has no thermostat as it is a machine without electronic control.
Tropicalized Machines	T-Class
Range	Air temperature: 5 – 40ºC Water temperature: 5 – 35ºC Pressure: 0.7 – 6 bar
Ice Production Capacity	Kg/24h at Room temperature 15ºC, Water temperature 10ºC
Certification	ISO 9001, CE
Others	R404 refrigerant 3/4" water inlet connection Exhaust gas connection 20mm. Single-phase power 220V–50Hz. / Optional: 220V-60Hz.

General characteristics

Simply ideal! The best cube your drink and ice maker can get!

Large volume, finger-sized ice cubes for efficient cooling with maximum heat transfer
in warmer ambient temperatures.

The vane machine is equipped with a completely electromechanical control, without jets or injectors powered by a pump, which
makes your machine extremely reliable in the most difficult conditions regarding water quality.

High-grade, food-safe stainless steel and superior density insulation ensure quality with consumption
energy optimized.

THE MANUFACTURER recommends using a filter or a water softener device. Reducing or eliminating calcium from water can significantly improve the life and efficiency of your machinery by preventing calcium build-up in kettles, hot water coils and taps. It also prevents the formation of white marks on glasses and plates. Any damage caused by limescale encrustations is not covered by the warranty
