WOOD-BURNING MOSAIC PIZZA OVEN NAPLES LINE WOOD-BURNING MOSAIC PIZZA OVEN NAPLES LINE
WOOD-BURNING MOSAIC PIZZA OVEN NAPLES LINE
WOOD-BURNING MOSAIC PIZZA OVEN NAPLES LINE
WOOD-BURNING MOSAIC PIZZA OVEN NAPLES LINE

MOSAIC WOOD-FIRED PIZZA OVEN NAPLES LINE

Ref: RF_02847

Made in italy

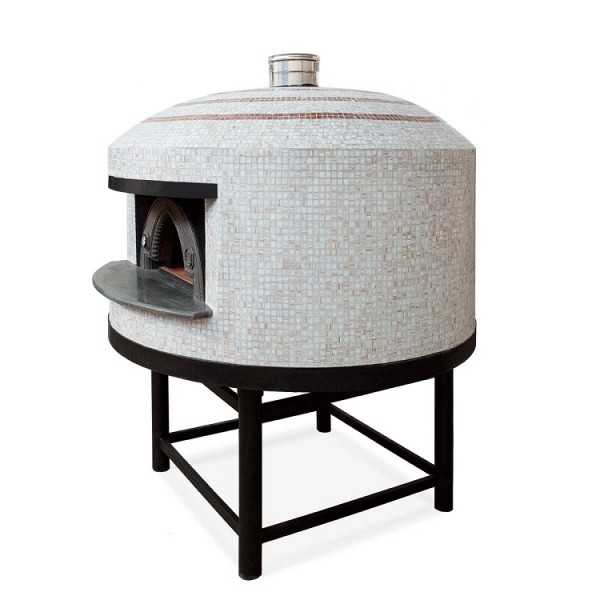

Napoli Line mosaic wood-fired pizza oven. Can be ordered in the following capacities: 5, 6, 7 and 8 pizzas

Available Options
Richiedi informazioni
100% secure payments
account_circleSend to a friend > Information request
MOSAIC WOOD-FIRED PIZZA OVEN NAPLES LINE

MOSAIC WOOD-FIRED PIZZA OVEN NAPLES LINE


Napoli Line mosaic wood-fired pizza oven. Can be ordered in the following capacities: 5, 6, 7 and 8 pizzas

Send to a friend


I accept the terms of the privacy policy


Ask a Quote

DESCRIPTION

  • Dome and external hood in hand-shaped bricks
  • External covering customizable on request
  • Removable reinforced iron support stand
  • Refractory terracotta hob
  • Crown in refractory bricks
  • Cast iron bow
  • 2cm lava stone windowsill
  • Available with gas or wood

DIMENSIONS

TECHNICAL DATA

  • Wood consumption: 7 kg/h
  • Operating temperature: 400/450 °C (recommended)
  • Chimney flue: Ø 25 cm
  • Nominal thermal power: 25000 kcal - 29 kW
  • Max thermal power: 29000 kcal - 34 kW
  • Fume temperature: 190 °C at the outlet
  • Smoke flow: 800 m3/h (when switched on) - 650 m3/h (at full capacity)
  • Smoke expulsion: Natural draft
RF_02847_50483

Data sheet

Made in Italy
Yes
Supply
wood-fired
Number of chambers
1

Download

SCHEDA TECNICA

Download (384.47k)
