ELECTRIC PIZZA OVEN GLASS LINE - MECHANICAL CONTROL - 2 CHAMBERS

Double deck electric pizza oven with glass door

Ref: RF_01586

Made in italy

1.459,00 € (price excluding 22% VAT)

€1,779.98 (price with 22% VAT included)

Glass Line electric pizza oven with 2-chamber mechanical control. Available in the following capacities per room : 4 Pizzas 6 Pizzas 9 pizzas

Available Options

Ask a Quote

100% secure payments

Send to a friend > Information request

Ask a Quote

Accessories

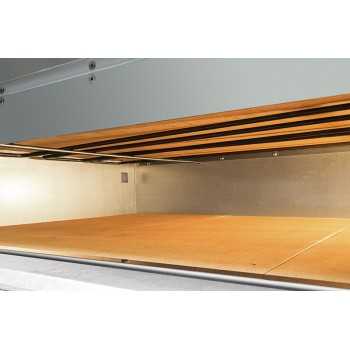

	Refractory top and bottom for Basic XL Line and Glass Line pizza ovens.	REFRATTARIO CIELO E PLATEA PER FORNI PIZZA LINEA BASIC XL E LINEA GLASS €109.00

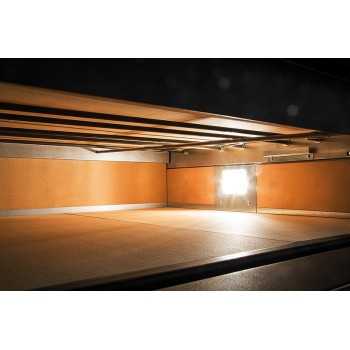

	All refractory for Basic XL and Glass Line.	TUTTO REFRATTARIO PER LINEA BASIC XL E GLASS €259.00

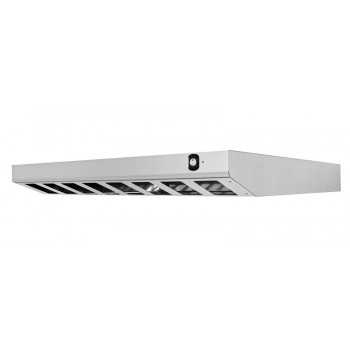

	Stainless steel hood to be combined with electric ovens for cooking pizzas. Available in various sizes to meet the various needs of pizzerias.	CAPPA IN ACCIAIO INOX PER FORNI PIZZA LINEA BASIC XL E GLASS €209.00

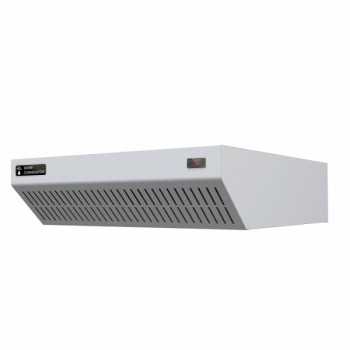

	Stainless steel hood for fume condensing ovens. Electric motor included.	Cappa a condensazione fumi con motore per forni Basic XL €1,039.00

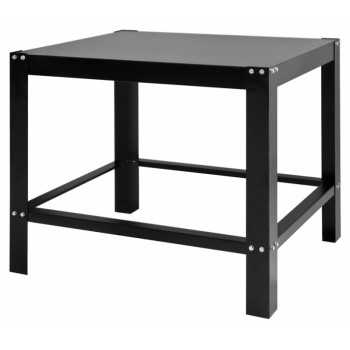

	Support for pizza ovens in painted iron. Available in different sizes.	SUPPORTO PER FORNI PIZZA LINEA BASIC XL E GLASS A DUE CAMERE €199.00
	Proofers that can be ordered with a capacity of 6 to 18 trays.	CELLA DI LIEVITAZIONE PER BASIC XL €1,199.00

The electric oven is made of stainless steel and pre-painted sheet metal. Special heat seal gasket, optimal insulation. Careful design characterized by the upper cap. Stainless steel handle. Equipped with smoke exhaust knob. The door has a thickness of 4 cm, with large glass to allow maximum internal visibility. Double glass is applied on all models to ensure maximum thermal resistance of the chamber. Refractory brick hob. Evaporated rock wool insulation. Armored resistances. Interior lighting. Power supply: 400 Volt three-phase + neutral.

8 PIZZA MODEL

DATA SHEET

Capacity per room : 4 35 cm pizzas

Power : 12 kW

Internal Dimensions : L.72 x D.72 x H.14 cm (x2)

External Dimensions : L.100 x D.94 x H.74.5 cm

Weight : 164 kg

Power supply : 230 / 400 V

Operating temperature : 45 / 450 °C

12 PIZZA MODEL

DATA SHEET

Capacity per room : 6 35 cm pizzas

Power : 18 kW

Internal Dimensions : L.72 x D.108 x H.14 cm (x2)

External Dimensions : L.100 x D.130 x H.74.5 cm

Weight : 203 kg

Power supply : 230 / 400 V

Operating temperature : 45 / 450 °C

MODEL 12 PIZZAS/L

DATA SHEET

Capacity per room : 6 35 cm pizzas

Power : 18 kW

Internal Dimensions : L.108 x D.72 x H.14 cm (x2)

External Dimensions : L.136 x D.94 x H.74.5 cm

Weight : 194 kg

Power supply : 230 / 400 V

Operating temperature : 45 / 450 °C

18 PIZZA MODEL

DATA SHEET

Capacity per room : 9 35 cm pizzas

Power : 26.4 kW

Internal Dimensions : L.108 x P.108 x H.14 cm (x2)

External Dimensions : L.136 x D.130 x H.74.5 cm

Weight : 279 kg

Power supply : 230 / 400 V

Operating temperature : 45 / 450 °C

Reference RF_01586_47526

Data sheet

Made in Italy: Yes
Supply: electric
Number of pizzas: 8 pizzas
12 pizzas
18 pizzas
Control panel: Manual
Number of chambers: 2 camere
Dimensions (LxDxH cm): 0
100 x 94 x 74,5
100 x 130 x 74,5
136 x 130 x 74,5
Weight (kg): 164
194
203
279
Room dimensions (WxDxH cm): 72 x 72 x 14 (x2)
72 x 108 x 14 (x2)
108 x 72 x 14 (x2)
108 x 108 x 14 (x2)
Pizza capacity: 8
12
18
Temperature (°C): 45 / 450
Electrical power (W): 12000
26400
Power (V/P/Hz): 400 / 3 / 50
Number of rooms: 2
Pizza diameter (cm): 35
