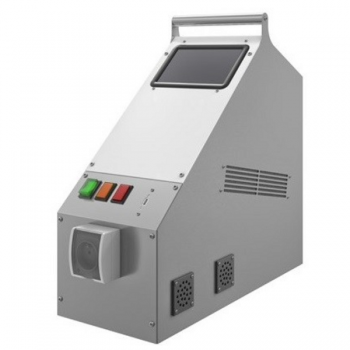

Digital portable ozone generator - Production 10 g/h

Ozone generator with digital control system and event recording on USB stick.
Designed to sanitize inside confined spaces, particularly in the food industry (e.g. laboratories, packaging rooms, food preparation rooms, cold rooms, etc.), in the healthcare sector (outpatient clinics, clinics, waiting rooms , etc) and automotive. Ozone, as a gas, has the possibility of sanitizing even areas that are difficult to reach with ordinary cleaning.
Used to prevent the formation of bacteria, mites, odors, viruses, spores, mold, etc.
The system is equipped with 560 m³/h fans. Ozone production is managed via electric discharge plates, insulated by a plastic duct.
The air is first filtered, then compressed to ensure optimal, constant and safe production.

The generator is equipped with:
- operation, danger and voltage lights;
- switch;
- operating acoustic warning in the standard version.

OPTIONAL ACCESSORIES

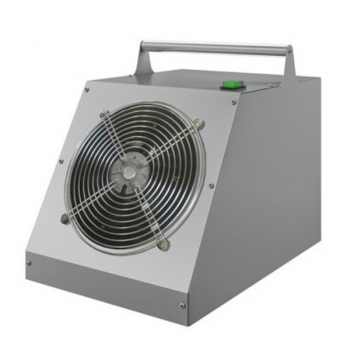

- Wireless probe: to interact with the generator and control it autonomously to generate the quantity of ozone set for the defined time. The sensor detects the quantity of ozone in the environment being treated and sends the value to the generator, which maintains this value according to what is set;
- Catalyst: the generator is equipped with an electrical socket managed by the control, to which a possible catalyst can be connected. In this way the environment will be made available in less time and without the operator having to enter to open doors and windows;
- Remote control: possibility of communicating in real time with web server via wi-fi connection, it can record all the data of the sanitization performed, any malfunctions or critical points. If equipped with an ozone detection probe, it also records the value over time and any alarms. There is the possibility of sending emails to warn the operator in real time of any alarms or changes in status, the operator can monitor and possibly remotely control the generator and check every parameter. The generator, if equipped with the advanced remote management system, complies with all industry 4.0 requirements.

If the system is equipped with a probe, the ozone degradation phase will end as soon as the detected ppm value is below a safety threshold set on the control. Without probe and catalyst, the system provides operation by time or by ppm value but in this case the value is calculated on the nominal basis and m³ of the environment and not actually calculated.

WORK PHASES
- first generation phase;
- second reaction;
- third phase of ozone reduction (only if connected to a catalyst it is possible to add this last phase always in time).

If the system was equipped with a probe, the first generation phase would last until the set ozone PPM was reached. In the second phase, it maintains the set PPMs for the programmed reaction time. In the third stage, the system operates until the set safe ozone PPM is reached.

DATA SHEET

Dimensions : L.23 x D.55.5 x H.57 cm
Treatment volume : 650 m³
Ozone production : 10 g/h
Air flow : 560 m³/h
Power supply : 230 V - 180 W
