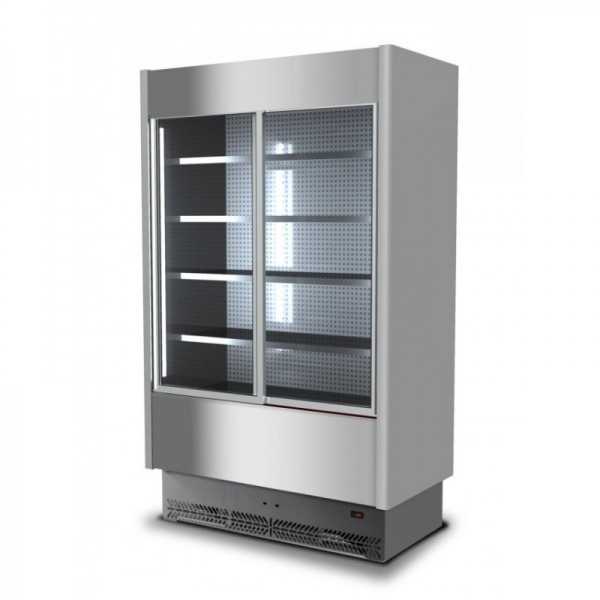

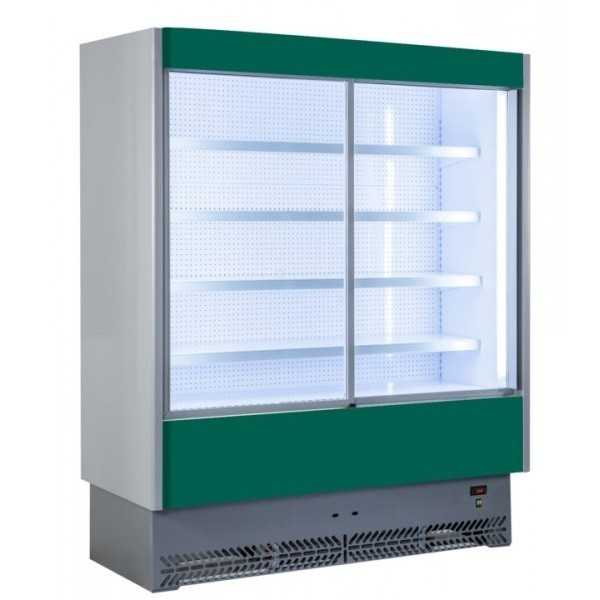

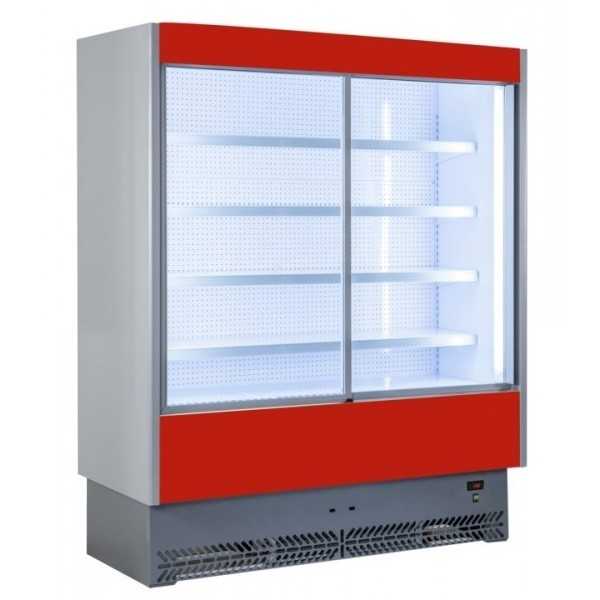

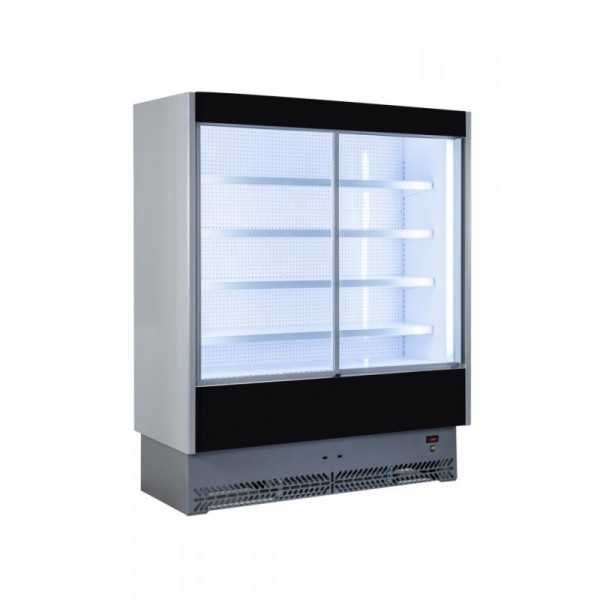

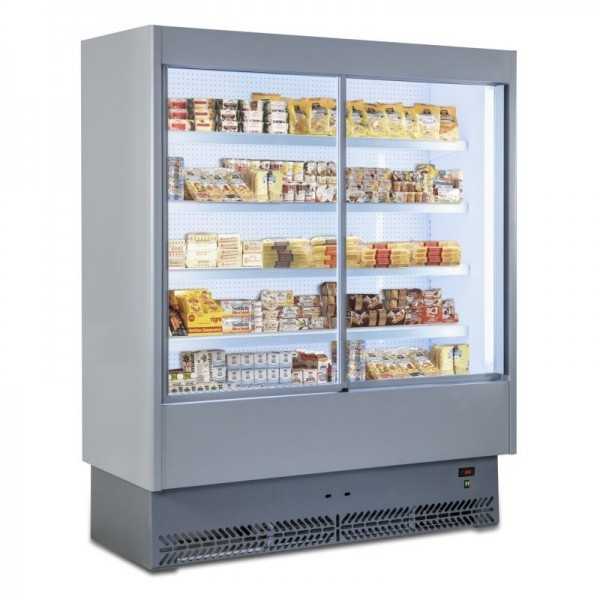

Meat multideck display fridge with sliding doors, depth 80 cm

Ref: RF_02013

Made in italy

2.799,00 € (price excluding 22% VAT)

€3,414.78 (price with 22% VAT included)

Can be ordered in the following lengths : L.135, L.160, L.197.5 and L.210 cm Lower shelf depth : 53 cm Shelves Depth : 38 cm

Length
Ask a Quote

100% secure payments
account_circleSend to a friend > Information request
Meat multideck display fridge with sliding doors, depth 80 cm

Meat multideck display fridge with sliding doors, depth 80 cm


Can be ordered in the following lengths : L.135, L.160, L.197.5 and L.210 cm Lower shelf depth : 53 cm Shelves Depth : 38 cm

Send to a friend


I accept the terms of the privacy policy


Ask a Quote

VERTICAL REFRIGERATED PLUG-IN DISPLAY, COMPACT, SUITABLE FOR DISPLAYING AND STORAGE OF FRESH PRE-PACKAGED PRODUCTS

Ecological, reliable, hygienic, completely customizable. Suitable for all sales surfaces

DEPTH 80 cm

Conceived with particular attention aimed at ease of installation and optimization of the cleaning system , guaranteed by easy access to the internal parts. The products on display are always kept at an ideal temperature , thanks to the flow of refrigerated air and a well-sized refrigeration system . It is a product with low energy consumption and low environmental impact : the tub is made without the use of CFCs . All phases, from design to production, have been taken care of in detail: technology and design made in Italy .

CHARACTERISTICS :
• Compact but with a large display surface
• Suitable for small, medium and large distribution
• “Made in Italy” technology, design and production
• Easy installation
• Optimization of the cleaning system
• Low energy consumption
• Low environmental impact
• Bathtub made without the use of CFCs
• Ventilated refrigeration
• Possibility of customizations on request

STANDARD EQUIPMENT :
• Insulated blind sides (thickness 5 cm each) with integrated neon lights
• Electronic control panel
• Defrost at stop
• Double-glazed sliding doors
• 4 shelves in non-toxic white post-painted sheet metal or in stainless steel (for stainless steel version), adjustable in height, equipped with price holder, without lighting, without product holding grids
• R452A valve in both the version with group and without group

AVAILABLE VERSIONS :
• With built-in unit (equipped with automatic condensation water recovery and evaporation system, via stainless steel coil)
• With connection to remote compressor: on request
• Stainless steel version: on request

AVAILABLE COLORS :

INSERT IN THE NOTES , WHILE CONFIRMING THE ORDER, THE COLOR OF THE SHOWCASE YOU PREFER FROM THE POSSIBILITIES LISTED ABOVE. IF YOU DON'T CHOOSE A COLOR WE WILL DELIVER TO YOU THE FIRST AVAILABLE SHOWCASE.

DATASHEET

VOLCANO 125
Dimensions : L.135 x D.81 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm
Exhibition surface area : 2.60 m2
Temperature : +0/+2 °C
Total Power Absorption : 2220 W (Ventilated display with built-in group) - 709 W (Ventilated display with remote group)
Power Absorbed by Lighting : 2 x 28 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1625 W
Gross Weight : 210 kg

VOLCANO 150
Dimensions : L.160 x D.81 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm
Exhibition surface area : 3.10 m2
Temperature : +0/+2 °C
Total Power Absorption : 2345 W (Ventilated display with built-in group) - 834 W (Ventilated display with remote group)
Power Absorbed by Lighting : 2 x 28 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1950 W
Gross Weight : 240 kg

VOLCANO 187
Dimensions : L.197.5 x D.81 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm
Exhibition surface area : 3.80 m2
Temperature : +0/+2 °C
Total Power Absorption : 3600 W (Ventilated display with built-in group) - 1065 W (Ventilated display with remote group)
Power Absorbed by Lighting : 2 x 28 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 2431 W
Gross Weight : 280 kg

VOLCANO 200
Dimensions : L.210 x D.81 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm
Exhibition surface area : 4.10 m2
Temperature : +0/+2 °C
Total Power Absorption : 3660 W (Ventilated display with built-in group) - 1130 W (Ventilated display with remote group)
Power Absorbed by Lighting : 2 x 28 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 2600 W
Gross Weight : 300 kg

FOR THIS PRODUCT AND FOR ALL SALINA - VULCANO - KIBUK PRODUCTS WE SUGGEST ORDERING THE NECESSARY CAGE TO ENSURE SAFE TRANSPORT.
