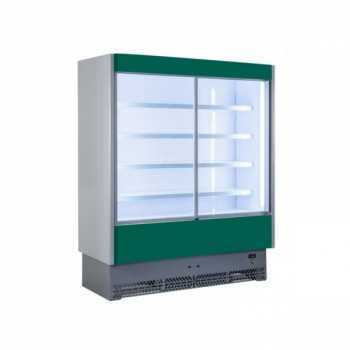

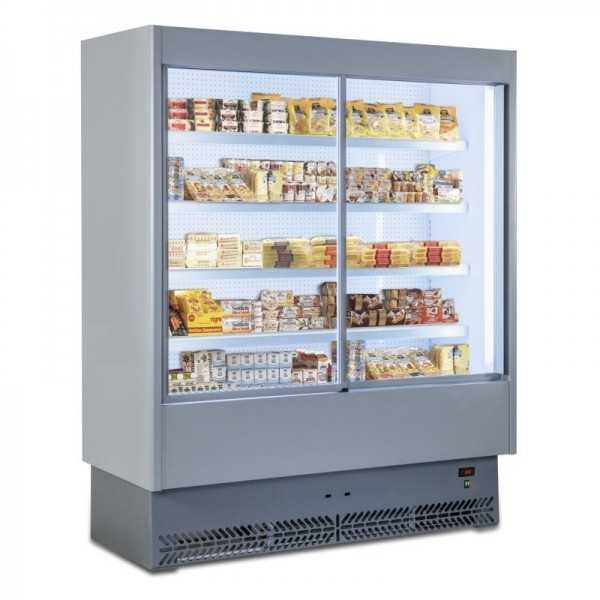

Deli multideck display fridge with sliding doors, depth 60 cm
Ref: RF_02010
Made in italy
2.399,00 € (price excluding 22% VAT)
€2,926.78 (price with 22% VAT included)
Can be ordered in the following lengths : L.135, L.160 and L.197.5 cm Lower shelf depth : 40 cm Shelves Depth : 26 cm
VERTICAL REFRIGERATED PLUG-IN DISPLAY, COMPACT, SUITABLE FOR DISPLAYING AND STORAGE OF FRESH PRE-PACKAGED PRODUCTS
Ecological, reliable, hygienic, completely customizable. Suitable for all sales surfacesDEPTH 60 cm
Conceived with particular attention aimed at ease of installation and optimization of the cleaning system , guaranteed by easy access to the internal parts. The products on display are always kept at an ideal temperature , thanks to the flow of refrigerated air and a well-sized refrigeration system . It is a product with low energy consumption and low environmental impact : the tub is made without the use of CFCs . All phases, from design to production, have been taken care of in detail: technology and design made in Italy .
CHARACTERISTICS :
• Compact but with a large display surface
• Suitable for small, medium and large distribution
• “Made in Italy” technology, design and production
• Easy installation
• Optimization of the cleaning system
• Low energy consumption
• Low environmental impact
• Bathtub made without the use of CFCs
• Ventilated refrigeration
• Possibility of customizations on request
STANDARD EQUIPMENT :
• Insulated blind sides (thickness 5 cm each) with integrated neon lights
• Electronic control panel
• Defrost at stop
• Double-glazed sliding doors
• 4 shelves in non-toxic white post-painted sheet metal or in stainless steel (for stainless steel version), adjustable in height, equipped with price holder, without lighting, without product holding grids
• R452A valve in both the version with group and without group
AVAILABLE VERSIONS :
• With built-in unit (equipped with automatic condensation water recovery and evaporation system, via stainless steel coil)
• With connection to remote compressor: on request

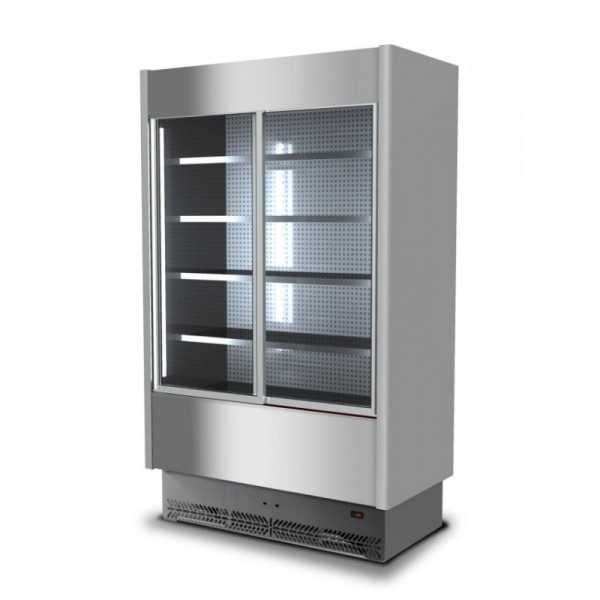

• Stainless steel version: on request

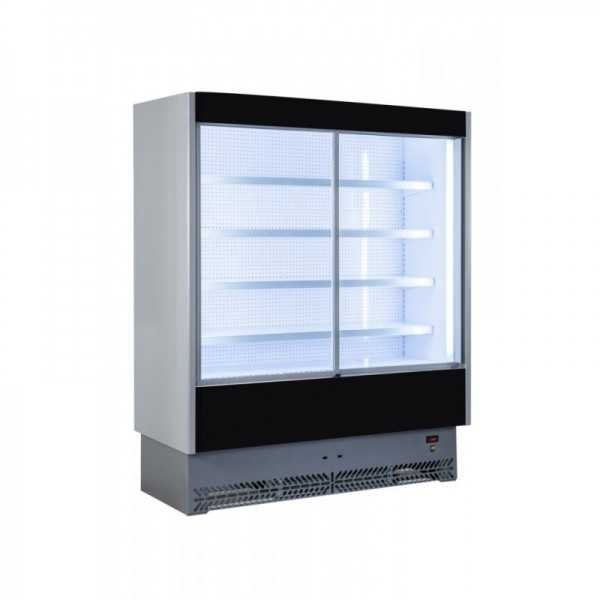

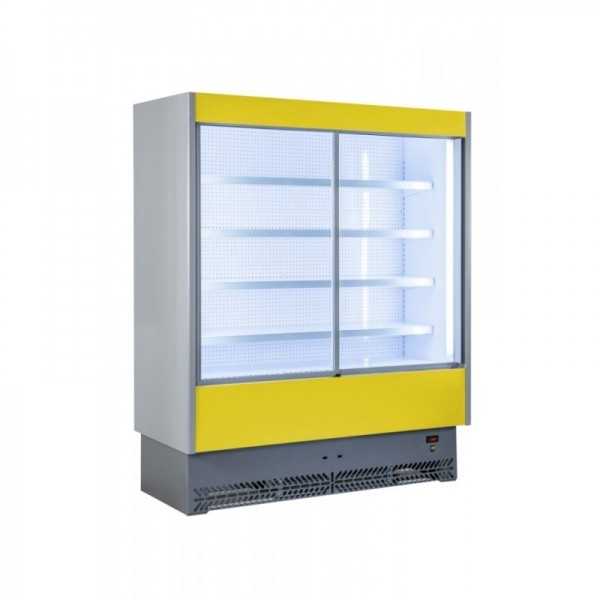

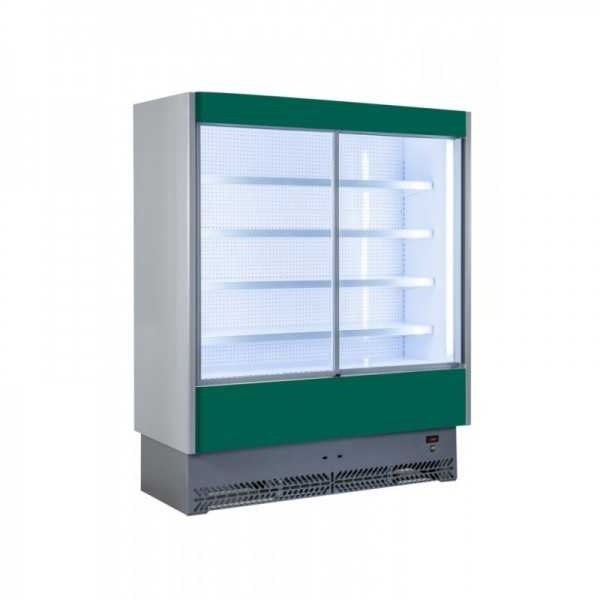

AVAILABLE COLORS :
INSERT IN THE NOTES , WHILE CONFIRMING THE ORDER, THE COLOR OF THE SHOWCASE YOU PREFER FROM THE POSSIBILITIES LISTED ABOVE. IF YOU DON'T CHOOSE A COLOR WE WILL DELIVER TO YOU THE FIRST AVAILABLE SHOWCASE.
DATASHEET
VOLCANO 125
Dimensions : L.135 x D.60 x H.195.8 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 1.95 m2
Temperature : +3/+5 °C
Total Power Absorption : 1595 W (Ventilated display with built-in group) - 84 W (Ventilated display with remote group)
Power Absorbed by Lighting : 2 x 28 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1375 W
Gross Weight : 170 kg
VOLCANO 150
Dimensions : L.160 x D.60 x H.195.8 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 2.35 m2
Temperature : +3/+5 °C
Total Power Absorption : 1595 W (Ventilated display with built-in group) - 84 W (Ventilated display with remote group)
Power Absorbed by Lighting : 2 x 28 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1650 W
Gross Weight : 225 kg
VOLCANO 187
Dimensions : L.197.5 x D.60 x H.195.8 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 2.94 m2
Temperature : +3/+5 °C
Total Power Absorption : 2660 W (Ventilated display with built-in group) - 129 W (Ventilated display with remote group)
Power Absorbed by Lighting : 2 x 28 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1980 W
Gross Weight : 255 kg
FOR THIS PRODUCT AND FOR ALL SALINA - VULCANO - KIBUK PRODUCTS WE SUGGEST ORDERING THE NECESSARY CAGE TO ENSURE SAFE TRANSPORT.
CHARACTERISTICS :
• Compact but with a large display surface
• Suitable for small, medium and large distribution
• “Made in Italy” technology, design and production
• Easy installation
• Optimization of the cleaning system
• Low energy consumption
• Low environmental impact
• Bathtub made without the use of CFCs
• Ventilated refrigeration
• Possibility of customizations on request
STANDARD EQUIPMENT :
• Insulated blind sides (thickness 5 cm each) with integrated neon lights
• Electronic control panel
• Defrost at stop
• Double-glazed sliding doors
• 4 shelves in non-toxic white post-painted sheet metal or in stainless steel (for stainless steel version), adjustable in height, equipped with price holder, without lighting, without product holding grids
• R452A valve in both the version with group and without group
AVAILABLE VERSIONS :
• With built-in unit (equipped with automatic condensation water recovery and evaporation system, via stainless steel coil)
• With connection to remote compressor: on request
• Stainless steel version: on request
AVAILABLE COLORS :
INSERT IN THE NOTES , WHILE CONFIRMING THE ORDER, THE COLOR OF THE SHOWCASE YOU PREFER FROM THE POSSIBILITIES LISTED ABOVE. IF YOU DON'T CHOOSE A COLOR WE WILL DELIVER TO YOU THE FIRST AVAILABLE SHOWCASE.
DATASHEET
VOLCANO 125
Dimensions : L.135 x D.60 x H.195.8 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 1.95 m2
Temperature : +3/+5 °C
Total Power Absorption : 1595 W (Ventilated display with built-in group) - 84 W (Ventilated display with remote group)
Power Absorbed by Lighting : 2 x 28 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1375 W
Gross Weight : 170 kg
VOLCANO 150
Dimensions : L.160 x D.60 x H.195.8 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 2.35 m2
Temperature : +3/+5 °C
Total Power Absorption : 1595 W (Ventilated display with built-in group) - 84 W (Ventilated display with remote group)
Power Absorbed by Lighting : 2 x 28 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1650 W
Gross Weight : 225 kg
VOLCANO 187
Dimensions : L.197.5 x D.60 x H.195.8 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
Exhibition surface area : 2.94 m2
Temperature : +3/+5 °C
Total Power Absorption : 2660 W (Ventilated display with built-in group) - 129 W (Ventilated display with remote group)
Power Absorbed by Lighting : 2 x 28 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1980 W
Gross Weight : 255 kg
FOR THIS PRODUCT AND FOR ALL SALINA - VULCANO - KIBUK PRODUCTS WE SUGGEST ORDERING THE NECESSARY CAGE TO ENSURE SAFE TRANSPORT.
RF_02010_56525
Data sheet
- Made in Italy
- Yes
Can be ordered in the following lengths : L.135, L.160 and L.197.5 cm
Lower shelf depth : 40 cm
Shelves Depth : 26 cm
