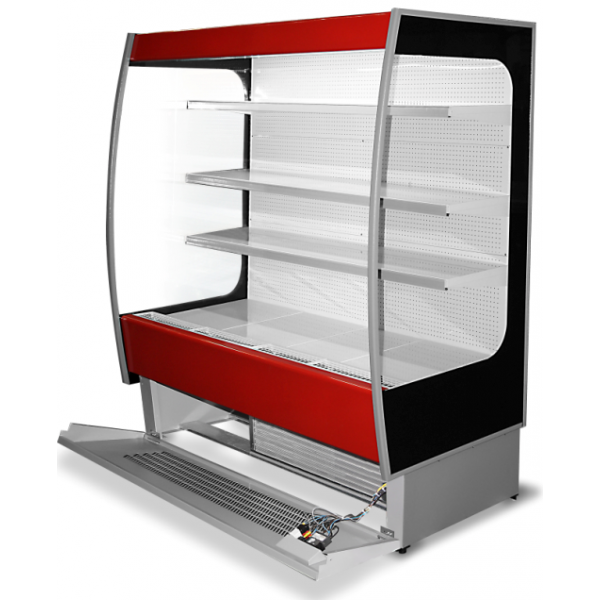

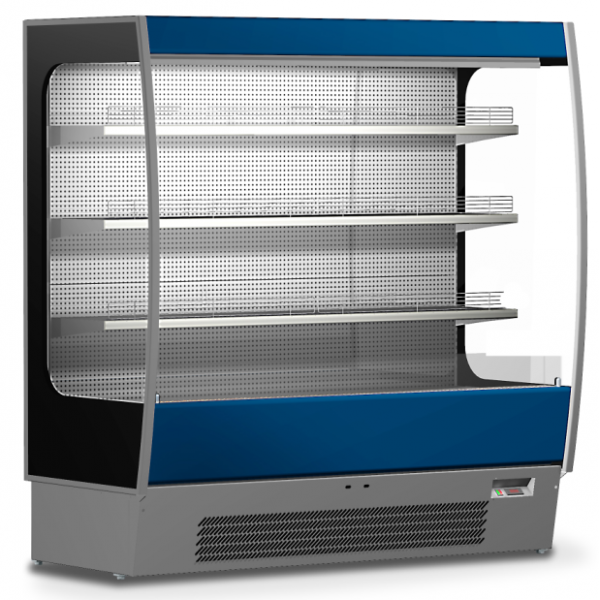

Refrigerated vertical wall display for the self-service display and sale of PRE-PACKAGED MEATS .
Easily installed, it is available both with a built-in unit equipped with an automatic condensation water recovery and re-evaporation system and in a version for connection to a remote compressor. It is usually supplied complete with sides, but it can be ducted for the preparation of compositions with different lengths. The products on display are always kept at the ideal temperature thanks to the flow of refrigerated air guaranteed by a well-sized refrigeration system; the temperature is regulated via an electronic thermostat.
STANDARD EQUIPMENT :
• Side in double glazing (Thickness 3 cm each)
• 3 shelves in white painted sheet metal (non-toxic, suitable for food) or in stainless steel (for stainless steel version), equipped with price holder
• Manual self-retracting night curtain
• Electronic control panel
• R452A valve
• Automatic evaporation of condensation water via stainless steel coil (for the version with built-in unit)
• Electric defrost
• Upper lighting with neon lamp
AVAILABLE VERSIONS :
• With built-in unit (equipped with automatic condensation water recovery and evaporation system, via stainless steel coil)
• With connection to remote compressor: on request
• Stainless steel version: on request
AVAILABLE COLORS :
INSERT IN THE NOTES , WHILE CONFIRMING THE ORDER, THE COLOR OF THE SHOWCASE YOU PREFER FROM THE POSSIBILITIES LISTED ABOVE. IF YOU DON'T CHOOSE A COLOR WE WILL DELIVER TO YOU THE FIRST AVAILABLE DISPLAY DISPLAY.
GLASS SIDES NOT INCLUDED IN THE PRICE DATASHEET
LIDO 100
Dimensions : L.106 x D.89 x H.199 cm
Lower shelf depth : 60.4 cm
Shelves Depth : 38 cm (x3)
Exhibition surface area : 1.80 m2
Temperature : +0/+2 °C
Total Power Absorption : 1732 W (Ventilated display with built-in unit)
Power Absorbed by Lighting : 1 x 20 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (Evap. T. -10°C) : 1300 W
Gross Weight : 180 kg
LIDO 125
Dimensions : L.131 x D.89 x H.199 cm
Lower shelf depth : 60.4 cm
Shelves Depth : 38 cm (x3)
Exhibition surface area : 2.64 m2
Temperature : +0/+2 °C
Total Power Absorption : 2191 W (Ventilated display with built-in unit)
Power Absorbed by Lighting : 1 x 40 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1950 W
Gross Weight : 240 kg
LIDO 187
Dimensions : L.193.5 x D.89 x H.199 cm
Lower shelf depth : 60.4 cm
Shelves Depth : 38 cm (x3)
Exhibition surface area : 3.50 m2
Temperature : +0/+2 °C
Total Power Absorption : 2953 W (Ventilated display with built-in unit)
Power Absorbed by Lighting : 1 x 60 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (Evap. T. -10°C) : 2600 W
Gross Weight : 300 kg
LIDO 250
Dimensions : L.256 x D.89 x H.199 cm
Lower shelf depth : 60.4 cm
Shelves Depth : 38 cm (x3)
Exhibition surface area : 4.60 m2
Temperature : +0/+2 °C
Total Power Absorption : 3997 W (Ventilated display with built-in unit)
Power Absorbed by Lighting : 2 x 80 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 3250 W
Gross Weight : 400 kg
