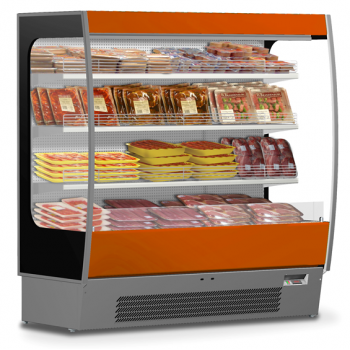

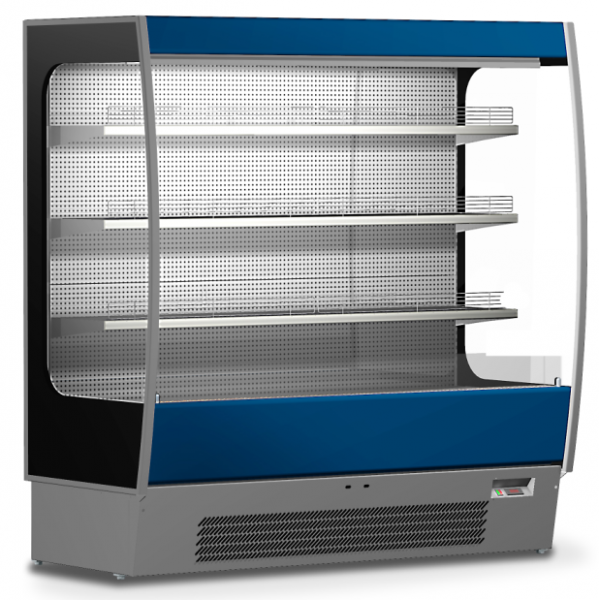

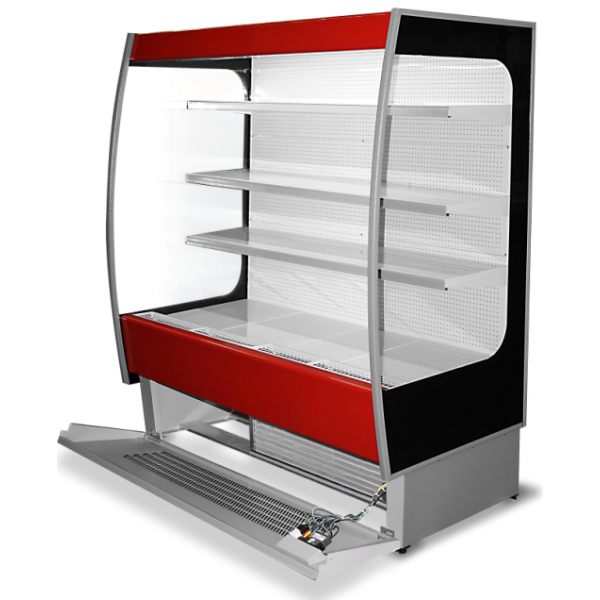

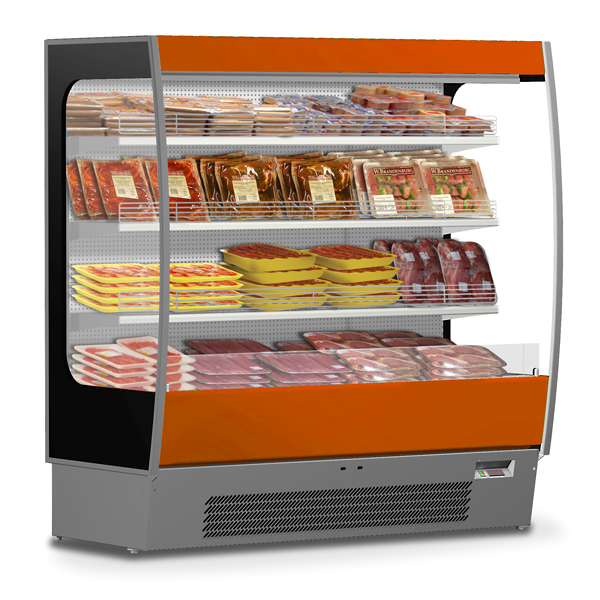

Refrigerated wall display unit with vertical development for the display and self-service sale of cured meats and dairy products, fruit and vegetables, drinks. Easy to install, it is available both with a built-in unit equipped with a system for the automatic recovery and re-evaporation of condensation water and in a version for connection to a remote compressor. It is usually supplied complete with sides, but it can be ducted for the preparation of compositions with different lengths. The products on display are always kept at the ideal temperature thanks to the flow of refrigerated air guaranteed by a well-sized refrigeration system; the temperature is regulated by an electronic thermostat.
STANDARD EQUIPMENT :
• 2 Double glazed sides (Thickness 3 cm/each)
• 3 shelves in non-toxic white post-painted sheet metal or in stainless steel (for stainless steel version), adjustable in height, equipped with price holders, without lighting, without product retaining grids
• Manual self-rolling night awning
• Electronic control panel
• R452A valve
• Automatic evaporation of condensation water via stainless steel coil (for the version with built-in group)
• Timed defrosting - at stop
• Upper lighting with neon lamp
AVAILABLE VERSIONS :
• With built-in group (equipped with automatic condensation water recovery and evaporation system, via stainless steel coil)
• With remote compressor connection: on request
• Stainless Steel Version: on request
AVAILABLE COLORS :
INSERT IN THE NOTES , DURING THE ORDER CONFIRMATION, THE COLOR OF THE DISPLAY CASE THAT YOU PREFER FROM THE POSSIBILITIES LISTED ABOVE. IF YOU DO NOT CHOOSE A COLOR, WE WILL DELIVER THE FIRST AVAILABLE DISPLAY CASE.
GLASS SHOULDERS NOT INCLUDED IN THE PRICE DATASHEET
LIDO 100
Dimensions : L.106 x D.89 x H.199 cm
Lower Shelf Depth : 60.4 cm
Shelves Depth : 38 cm (x3)
Exhibition area : 1.80 m2
Temperature : +3/+5 °C
Total absorbed power : 1610 W (ventilated display with built-in group)
Power Consumption by Lighting : 1 x 18 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 1100 W
Gross Weight : 180 kg
LIDO 125
Dimensions : L.131 x D.89 x H.199 cm
Lower Shelf Depth : 60.4 cm
Shelves Depth : 38 cm (x3)
Exhibition Area : 2.64 m2
Temperature : +3/+5 °C
Total Absorbed Power : 1921 W (Fan display with built-in group)
Power Consumption by Lighting : 1 x 36 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 1650 W
Gross Weight : 240 kg
LIDO 187
Dimensions : L.193.5 x D.89 x H.199 cm
Lower Shelf Depth : 60.4 cm
Shelves Depth : 38 cm (x3)
Exhibition area : 3.50 m2
Temperature : +3/+5 °C
Total absorbed power : 2121 W (ventilated display with built-in group)
Power Consumption by Lighting : 1 x 58 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 2200 W
Gross Weight : 300 kg
LIDO 250
Dimensions : L.256 x D.89 x H.199 cm
Lower Shelf Depth : 60.4 cm
Shelves Depth : 38 cm (x3)
Exhibition area : 4.60 m2
Temperature : +3/+5 °C
Total absorbed power : 2499 W (ventilated display with built-in group)
Power Consumption by Lighting : 2 x 36 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 2750 W
Gross Weight : 400 kg
