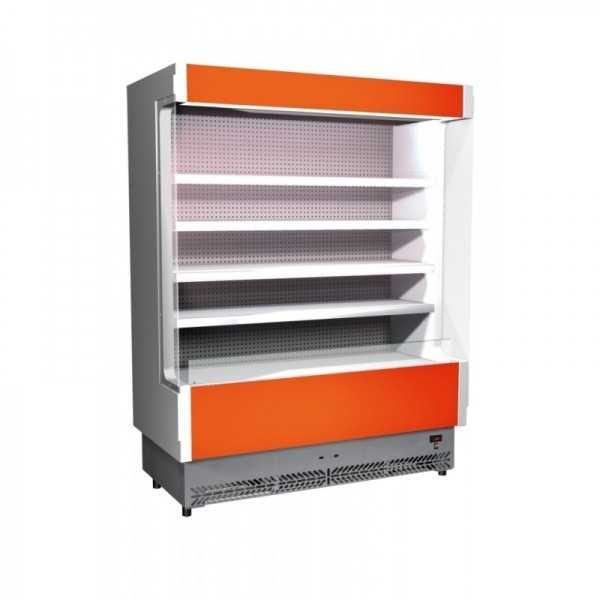

Meat multideck display fridge VULCANO, depth 80 cm
Ref: RF_02003
Made in italy
1.959,00 € (price excluding 22% VAT)
€2,389.98 (price with 22% VAT included)
Vulcano model refrigerated wall display. Designed for displaying and preserving meat. Designed for markets, butchers and delicatessens. Different versions available with different lengths depending on needs.
Accessories
  | RIPIANI SUPPLEMENTARI IN LAMIERA VERNICIATA BIANCA VULCANO 80 €79.00 | |
  | GRIGLIA FERMA-PRODOTTI PLASTIFICATA BIANCA PER VULCANO VERNICIATO (H 80 mm) €25.00 | |
  White plasticized shelf divider for Vulcano 80. | Divisorio per ripiano plastificato bianco V80 €39.99 | |
  White plastic-coated tub divider for Vulcano wall display, 80 cm deep. Dimensions: L.45 x H.15 cm. | Divisorio per vasca plastificato bianco V80 €49.99 | |
  White LED shelf lighting. | ILLUMINAZIONE BIANCA A NEON PER RIPIANO €89.00 | |
  Pink LED shelf lighting. | ILLUMINAZIONE ROSATA A NEON \'\'NATURAL\'\' PER RIPIANO €132.00 | |
  | KIT RUOTE (2 con freno e 2 senza freno) VULCANO 80 €229.00 | |
  | GABBIA LEGNO VULCANO GABBIAV80 €79.00 | |
  | UNITà€ REFRIGERANTE REMOTA ERMETICA PER VULCANO PROFONDITA\' 80 CM €899.00 |
VERTICAL REFRIGERATED PLUG-IN DISPLAY, COMPACT, SUITABLE FOR DISPLAYING AND STORAGE OF FRESH PRE-PACKAGED PRODUCTS
Ecological, reliable, hygienic, completely customizable. Suitable for all sales surfacesDEPTH 80 cm
Conceived with particular attention aimed at ease of installation and optimization of the cleaning system , guaranteed by easy access to the internal parts. The products on display are always kept at an ideal temperature , thanks to the flow of refrigerated air and a well-sized refrigeration system . It is a product with low energy consumption and low environmental impact : the tub is made without the use of CFCs . All phases, from design to production, have been taken care of in detail: technology and design made in Italy .
CHARACTERISTICS :
• Compact but with a large display surface
• Suitable for small, medium and large distribution
• “Made in Italy” technology, design and production
• Easy installation
• Optimization of the cleaning system
• Low energy consumption
• Low environmental impact
• Bathtub made without the use of CFCs
• Ventilated refrigeration
• Possibility of customizations on request
STANDARD EQUIPMENT :
• Thermoformed and insulated sides (4 cm thick each) with tempered glass side
• Electronic control panel
• Electric defrost
• Top lighting with pink neon lamp
• Manual self-retracting night curtain
• 4 shelves in non-toxic white post-painted sheet metal or in stainless steel (for stainless steel version), adjustable in height, equipped with price holder, without lighting, without product holding grids
• R452A valve in both the version with group and without group
AVAILABLE VERSIONS :
• With built-in unit (equipped with automatic condensation water recovery and evaporation system, via stainless steel coil)
• With connection to remote compressor: on request

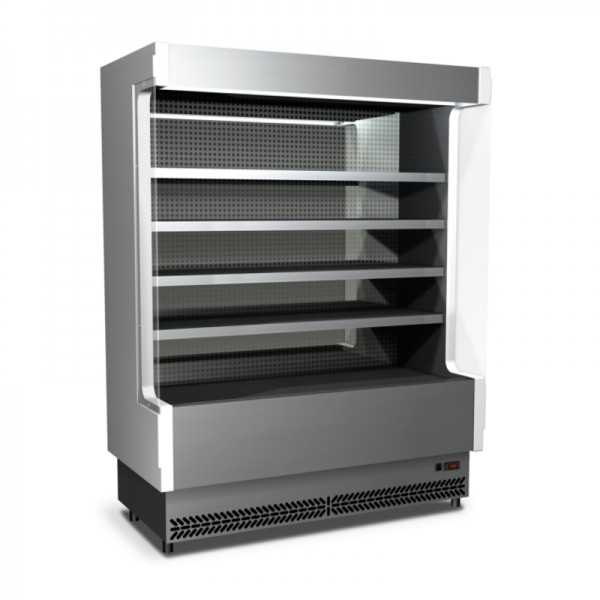

• Stainless steel version: on request
AVAILABLE COLORS :
INSERT IN THE NOTES , WHILE CONFIRMING THE ORDER, THE COLOR OF THE SHOWCASE YOU PREFER FROM THE POSSIBILITIES LISTED ABOVE. IF YOU DON'T CHOOSE A COLOR WE WILL DELIVER TO YOU THE FIRST AVAILABLE SHOWCASE.
DATASHEET
VOLCANO 100
Dimensions : L.108 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition surface area : 2.00 m2
Temperature : +0/+2 °C
Total Power Absorption : 2095 W (Ventilated display with built-in group) - 584 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 18 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (Evap. T. -10°C) : 1300 W
Gross Weight : 180 kg
VOLCANO 125
Dimensions : L.133 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition surface area : 2.6 m2
Temperature : +0/+2 °C
Total Power Absorption : 2220 W (Ventilated display with built-in group) - 709 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 18 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1625 W
Gross Weight : 210 kg
VOLCANO 140
Dimensions : L.148 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition surface area : 2.90 m2
Temperature : +0/+2 °C
Total Power Absorption : 2295 W (Ventilated display with built-in group) - 784 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 18 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1820 W
Gross Weight : 225 kg
VOLCANO 150
Dimensions : L.158 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition surface area : 3.10 m2
Temperature : +0/+2 °C
Total Power Absorption : 2345 W (Ventilated display with built-in group) - 834 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 36 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1950 W
Gross Weight : 240 kg
VOLCANO 187
Dimensions : L.195.5 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition surface area : 3.80 m2
Temperature : +0/+2 °C
Total Power Absorption : 3600 W (Ventilated display with built-in group) - 1065 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 58 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 2431 W
Gross Weight : 280 kg
VOLCANO 200
Dimensions : L.208 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition surface area : 4.10 m2
Temperature : +0/+2 °C
Total Power Absorption : 3660 W (Ventilated display with built-in group) - 1130 W (Ventilated display with remote group)
Power Absorbed by Lighting : 2 x 36 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 2600 W
Gross Weight : 300 kg
VOLCANO 250
Dimensions : L.258 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition surface area : 5.10 m2
Temperature : +0/+2 °C
Total Power Absorption : 3900 W (Ventilated display with built-in group) - 1405 W (Ventilated display with remote group)
Power Absorbed by Lighting : 2 x 36 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 3250 W
Gross Weight : 400 kg
VOLCANO 300
Dimensions : L.308 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition surface area : 6.20 m2
Temperature : +0/+2 °C
Total Power Absorption : 4400 W (Ventilated display with built-in group) - 1770 W (Ventilated display with remote group)
Power Absorbed by Lighting : 2 x 36 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 3900 W
Gross Weight : 500 kg
FOR THIS PRODUCT AND FOR ALL SALINA - VULCANO - KIBUK PRODUCTS WE SUGGEST ORDERING THE NECESSARY CAGE TO ENSURE SAFE TRANSPORT.
CHARACTERISTICS :
• Compact but with a large display surface
• Suitable for small, medium and large distribution
• “Made in Italy” technology, design and production
• Easy installation
• Optimization of the cleaning system
• Low energy consumption
• Low environmental impact
• Bathtub made without the use of CFCs
• Ventilated refrigeration
• Possibility of customizations on request
STANDARD EQUIPMENT :
• Thermoformed and insulated sides (4 cm thick each) with tempered glass side
• Electronic control panel
• Electric defrost
• Top lighting with pink neon lamp
• Manual self-retracting night curtain
• 4 shelves in non-toxic white post-painted sheet metal or in stainless steel (for stainless steel version), adjustable in height, equipped with price holder, without lighting, without product holding grids
• R452A valve in both the version with group and without group
AVAILABLE VERSIONS :
• With built-in unit (equipped with automatic condensation water recovery and evaporation system, via stainless steel coil)
• With connection to remote compressor: on request
• Stainless steel version: on request
AVAILABLE COLORS :
INSERT IN THE NOTES , WHILE CONFIRMING THE ORDER, THE COLOR OF THE SHOWCASE YOU PREFER FROM THE POSSIBILITIES LISTED ABOVE. IF YOU DON'T CHOOSE A COLOR WE WILL DELIVER TO YOU THE FIRST AVAILABLE SHOWCASE.
DATASHEET
VOLCANO 100
Dimensions : L.108 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition surface area : 2.00 m2
Temperature : +0/+2 °C
Total Power Absorption : 2095 W (Ventilated display with built-in group) - 584 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 18 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (Evap. T. -10°C) : 1300 W
Gross Weight : 180 kg
VOLCANO 125
Dimensions : L.133 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition surface area : 2.6 m2
Temperature : +0/+2 °C
Total Power Absorption : 2220 W (Ventilated display with built-in group) - 709 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 18 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1625 W
Gross Weight : 210 kg
VOLCANO 140
Dimensions : L.148 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition surface area : 2.90 m2
Temperature : +0/+2 °C
Total Power Absorption : 2295 W (Ventilated display with built-in group) - 784 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 18 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1820 W
Gross Weight : 225 kg
VOLCANO 150
Dimensions : L.158 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition surface area : 3.10 m2
Temperature : +0/+2 °C
Total Power Absorption : 2345 W (Ventilated display with built-in group) - 834 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 36 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 1950 W
Gross Weight : 240 kg
VOLCANO 187
Dimensions : L.195.5 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition surface area : 3.80 m2
Temperature : +0/+2 °C
Total Power Absorption : 3600 W (Ventilated display with built-in group) - 1065 W (Ventilated display with remote group)
Power Absorbed by Lighting : 1 x 58 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 2431 W
Gross Weight : 280 kg
VOLCANO 200
Dimensions : L.208 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition surface area : 4.10 m2
Temperature : +0/+2 °C
Total Power Absorption : 3660 W (Ventilated display with built-in group) - 1130 W (Ventilated display with remote group)
Power Absorbed by Lighting : 2 x 36 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 2600 W
Gross Weight : 300 kg
VOLCANO 250
Dimensions : L.258 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition surface area : 5.10 m2
Temperature : +0/+2 °C
Total Power Absorption : 3900 W (Ventilated display with built-in group) - 1405 W (Ventilated display with remote group)
Power Absorbed by Lighting : 2 x 36 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 3250 W
Gross Weight : 400 kg
VOLCANO 300
Dimensions : L.308 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition surface area : 6.20 m2
Temperature : +0/+2 °C
Total Power Absorption : 4400 W (Ventilated display with built-in group) - 1770 W (Ventilated display with remote group)
Power Absorbed by Lighting : 2 x 36 W
Climate Class : 3 (Environmental temperature +25 °C; Relative humidity 60%)
Cooling Capacity for Remote Group (Evap. T. -10°C) : 3900 W
Gross Weight : 500 kg
FOR THIS PRODUCT AND FOR ALL SALINA - VULCANO - KIBUK PRODUCTS WE SUGGEST ORDERING THE NECESSARY CAGE TO ENSURE SAFE TRANSPORT.
RF_02003_56496
Data sheet
- Made in Italy
- Yes
- Use
- Meat
Vulcano model refrigerated wall display. Designed for displaying and preserving meat. Designed for markets, butchers and delicatessens. Different versions available with different lengths depending on needs.
