Deli multideck display fridge VULCANO, depth 80 cm
Ref: RF_02001
Made in italy
1.719,00 € (price excluding 22% VAT)
€2,097.18 (price with 22% VAT included)

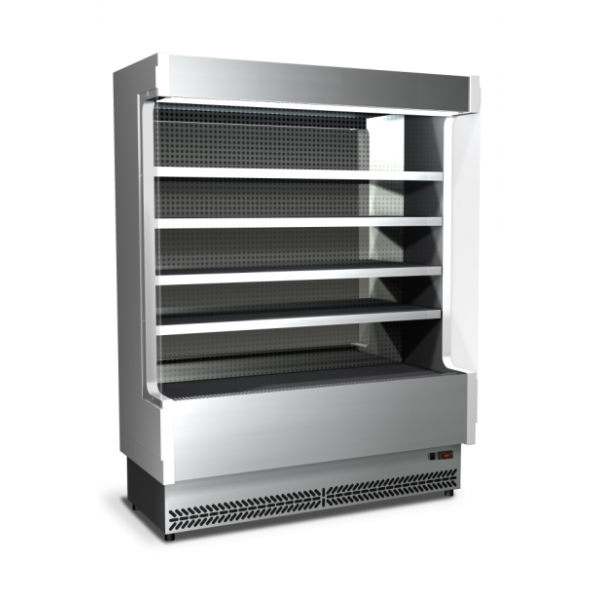

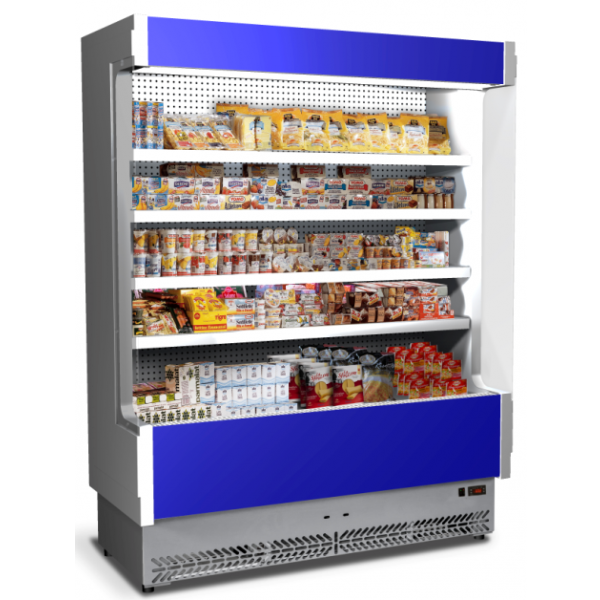

Vulcano model refrigerated wall display with a depth of 80 cm. Designed for displaying pre-packaged fresh foods that need to be stored at appropriate temperatures such as cured meats, dairy products and drinks. Designed for markets, butchers and delicatessens. Different versions available with different lengths depending on needs.
Accessories
  | RIPIANI SUPPLEMENTARI IN LAMIERA VERNICIATA BIANCA VULCANO 80 €79.00 | |
  | GRIGLIA FERMA-PRODOTTI PLASTIFICATA BIANCA PER VULCANO VERNICIATO (H 80 mm) €25.00 | |
  White plasticized shelf divider for Vulcano 80. | Divisorio per ripiano plastificato bianco V80 €39.99 | |
  White plastic-coated tub divider for Vulcano wall display, 80 cm deep. Dimensions: L.45 x H.15 cm. | Divisorio per vasca plastificato bianco V80 €49.99 | |
  White LED shelf lighting. | ILLUMINAZIONE BIANCA A NEON PER RIPIANO €89.00 | |
  Pink LED shelf lighting. | ILLUMINAZIONE ROSATA A NEON \'\'NATURAL\'\' PER RIPIANO €132.00 | |
  | KIT RUOTE (2 con freno e 2 senza freno) VULCANO 80 €229.00 | |
  | GABBIA LEGNO VULCANO GABBIAV80 €79.00 | |
  | UNITà€ REFRIGERANTE REMOTA ERMETICA PER VULCANO PROFONDITA\' 80 CM €899.00 |
VERTICAL PLUG-IN REFRIGERATED DISPLAY CASE, COMPACT, SUITABLE FOR DISPLAYING AND STORAGE OF PRE-PACKAGED FRESH PRODUCTS
Ecological, reliable, hygienic, fully customizable. Suitable for all sales surfacesDEPTH 80 cm
Designed with particular attention to ease of installation and optimization of the cleaning system , guaranteed by easy access to the internal parts. The products on display are always kept at an ideal temperature , thanks to the flow of refrigerated air and a well-sized refrigeration system . It is a product with low energy consumption and low environmental impact : the tank is made without the use of CFCs . All phases, from design to production, have been taken care of in detail: technology and design made in Italy .
CHARACTERISTICS :
• Compact but with a large display surface
• Suitable for small, medium and large distribution
• Technology, design and production “Made in Italy”
• Ease of installation
• Cleaning system optimization
• Low energy consumption
• Low environmental impact
• Tank made without the use of CFCs
• Ventilated refrigeration
• Possibility of customizations on request
STANDARD EQUIPMENT :
• Thermoformed and insulated shoulders (4 cm thick each) with tempered glass side
• Electronic control panel
• Off-cycle defrosting
• Upper lighting with neon lamp
• 4 shelves in non-toxic white post-painted sheet metal or in stainless steel (for stainless steel version), adjustable in height, equipped with price holders, without lighting, without product retaining grids
• R452A valve both in the version with group and without group
AVAILABLE VERSIONS :
• With built-in group (equipped with automatic condensation water recovery and evaporation system, via stainless steel coil)
• With remote compressor connection: on request
• Stainless Steel Version: on request

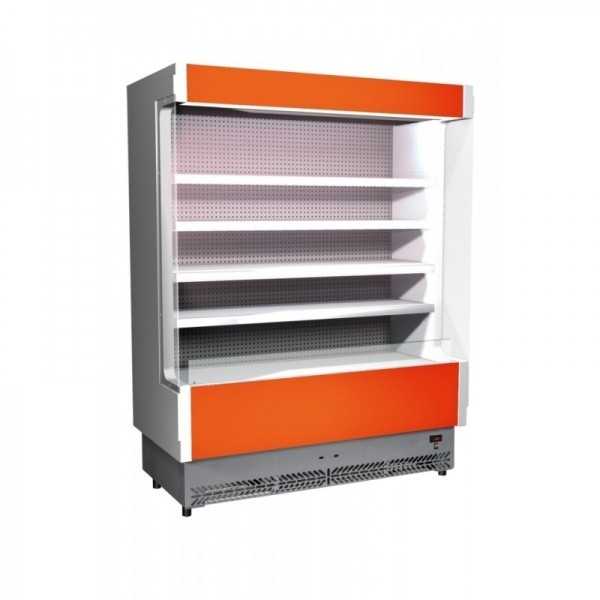

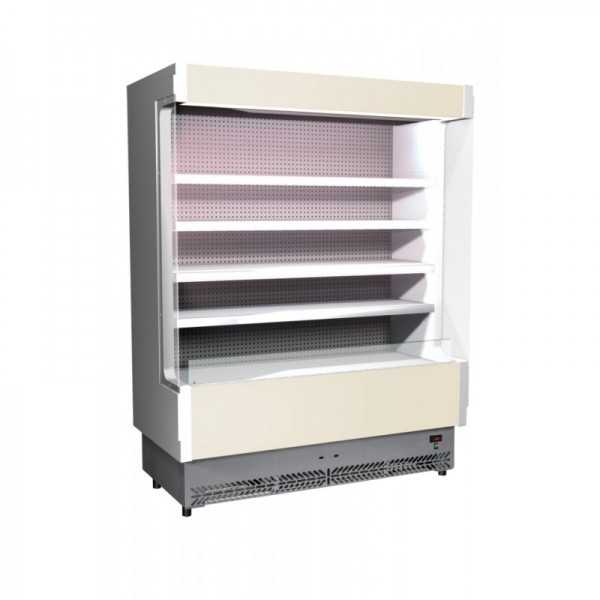

AVAILABLE COLORS :
INSERT IN THE NOTES , DURING THE ORDER CONFIRMATION, THE COLOR OF THE DISPLAY CASE THAT YOU PREFER FROM THE POSSIBILITIES LISTED ABOVE. IF YOU DO NOT CHOOSE A COLOR, WE WILL DELIVER THE FIRST AVAILABLE DISPLAY CASE.
DATASHEET
VOLCANO 100
Dimensions : L.108 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition area : 2.00 m2
Temperature : +3/+5 °C
Total Absorbed Power : 1595 W (Fanned display with built-in group) - 84 W (Fanned display with remote group)
Power Consumption by Lighting : 1 x 18 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 1100 W
Gross Weight : 180 kg
VOLCANO 125
Dimensions : L.133 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition area : 2.6 m2
Temperature : +3/+5 °C
Total Absorbed Power : 1595 W (Fanned display with built-in group) - 84 W (Fanned display with remote group)
Power Consumption by Lighting : 1 x 18 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 1375 W
Gross Weight : 210 kg
VOLCANO 140
Dimensions : L.148 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition area : 2.90 m2
Temperature : +3/+5 °C
Total Absorbed Power : 1595 W (Fanned display with built-in group) - 84 W (Fanned display with remote group)
Power Consumption by Lighting : 1 x 18 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 1540 W
Gross Weight : 225 kg
VOLCANO 150
Dimensions : L.158 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition area : 3.10 m2
Temperature : +3/+5 °C
Total Absorbed Power : 1595 W (Fanned display with built-in group) - 84 W (Fanned display with remote group)
Power Consumption by Lighting : 1 x 36 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 1650 W
Gross Weight : 240 kg
VOLCANO 187
Dimensions : L.195.5 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition area : 3.80 m2
Temperature : +3/+5 °C
Total Absorbed Power : 2660 W (Fanned display with built-in group) - 130 W (Fanned display with remote group)
Power Consumption by Lighting : 1 x 58 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 1980 W
Gross Weight : 280 kg
VOLCANO 200
Dimensions : L.208 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition area : 4.10 m2
Temperature : +3/+5 °C
Total Absorbed Power : 2660 W (Fanned display with built-in group) - 130 W (Fanned display with remote group)
Power Consumption by Lighting : 2 x 36 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 2200 W
Gross Weight : 300 kg
VOLCANO 250
Dimensions : L.258 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition area : 5.10 m2
Temperature : +3/+5 °C
Total Absorbed Power : 2684 W (Fanned display with built-in group) - 155 W (Fanned display with remote group)
Power Consumption by Lighting : 2 x 36 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 2750 W
Gross Weight : 400 kg
VOLCANO 300
Dimensions : L.308 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition area : 6.20 m2
Temperature : +3/+5 °C
Total Absorbed Power : 3044 W (Fanned display with built-in group) - 270 W (Fanned display with remote group)
Power Consumption by Lighting : 2 x 36 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 3300 W
Gross Weight : 500 kg
FOR THIS PRODUCT AND FOR ALL SALINA - VULCANO - KIBUK PRODUCTS WE RECOMMEND ORDERING THE NECESSARY CAGE TO ENSURE SAFE TRANSPORT.
CHARACTERISTICS :
• Compact but with a large display surface
• Suitable for small, medium and large distribution
• Technology, design and production “Made in Italy”
• Ease of installation
• Cleaning system optimization
• Low energy consumption
• Low environmental impact
• Tank made without the use of CFCs
• Ventilated refrigeration
• Possibility of customizations on request
STANDARD EQUIPMENT :
• Thermoformed and insulated shoulders (4 cm thick each) with tempered glass side
• Electronic control panel
• Off-cycle defrosting
• Upper lighting with neon lamp
• 4 shelves in non-toxic white post-painted sheet metal or in stainless steel (for stainless steel version), adjustable in height, equipped with price holders, without lighting, without product retaining grids
• R452A valve both in the version with group and without group
AVAILABLE VERSIONS :
• With built-in group (equipped with automatic condensation water recovery and evaporation system, via stainless steel coil)
• With remote compressor connection: on request
• Stainless Steel Version: on request
AVAILABLE COLORS :
INSERT IN THE NOTES , DURING THE ORDER CONFIRMATION, THE COLOR OF THE DISPLAY CASE THAT YOU PREFER FROM THE POSSIBILITIES LISTED ABOVE. IF YOU DO NOT CHOOSE A COLOR, WE WILL DELIVER THE FIRST AVAILABLE DISPLAY CASE.
DATASHEET
VOLCANO 100
Dimensions : L.108 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition area : 2.00 m2
Temperature : +3/+5 °C
Total Absorbed Power : 1595 W (Fanned display with built-in group) - 84 W (Fanned display with remote group)
Power Consumption by Lighting : 1 x 18 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 1100 W
Gross Weight : 180 kg
VOLCANO 125
Dimensions : L.133 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition area : 2.6 m2
Temperature : +3/+5 °C
Total Absorbed Power : 1595 W (Fanned display with built-in group) - 84 W (Fanned display with remote group)
Power Consumption by Lighting : 1 x 18 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 1375 W
Gross Weight : 210 kg
VOLCANO 140
Dimensions : L.148 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition area : 2.90 m2
Temperature : +3/+5 °C
Total Absorbed Power : 1595 W (Fanned display with built-in group) - 84 W (Fanned display with remote group)
Power Consumption by Lighting : 1 x 18 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 1540 W
Gross Weight : 225 kg
VOLCANO 150
Dimensions : L.158 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition area : 3.10 m2
Temperature : +3/+5 °C
Total Absorbed Power : 1595 W (Fanned display with built-in group) - 84 W (Fanned display with remote group)
Power Consumption by Lighting : 1 x 36 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 1650 W
Gross Weight : 240 kg
VOLCANO 187
Dimensions : L.195.5 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition area : 3.80 m2
Temperature : +3/+5 °C
Total Absorbed Power : 2660 W (Fanned display with built-in group) - 130 W (Fanned display with remote group)
Power Consumption by Lighting : 1 x 58 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 1980 W
Gross Weight : 280 kg
VOLCANO 200
Dimensions : L.208 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition area : 4.10 m2
Temperature : +3/+5 °C
Total Absorbed Power : 2660 W (Fanned display with built-in group) - 130 W (Fanned display with remote group)
Power Consumption by Lighting : 2 x 36 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 2200 W
Gross Weight : 300 kg
VOLCANO 250
Dimensions : L.258 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition area : 5.10 m2
Temperature : +3/+5 °C
Total Absorbed Power : 2684 W (Fanned display with built-in group) - 155 W (Fanned display with remote group)
Power Consumption by Lighting : 2 x 36 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 2750 W
Gross Weight : 400 kg
VOLCANO 300
Dimensions : L.308 x D.80 x H.204 cm
Lower shelf depth : 53 cm
Shelves Depth : 38 cm (x4)
Exhibition area : 6.20 m2
Temperature : +3/+5 °C
Total Absorbed Power : 3044 W (Fanned display with built-in group) - 270 W (Fanned display with remote group)
Power Consumption by Lighting : 2 x 36 W
Climate Class : 3 (Ambient temperature +25 °C; Relative humidity 60%)
Cooling Power for Remote Group (T.Evap. -10°C) : 3300 W
Gross Weight : 500 kg
FOR THIS PRODUCT AND FOR ALL SALINA - VULCANO - KIBUK PRODUCTS WE RECOMMEND ORDERING THE NECESSARY CAGE TO ENSURE SAFE TRANSPORT.
RF_02001_56480
Data sheet
- Made in Italy
- Yes
Vulcano model refrigerated wall display with a depth of 80 cm. Designed for displaying pre-packaged fresh foods that need to be stored at appropriate temperatures such as cured meats, dairy products and drinks. Designed for markets, butchers and delicatessens. Different versions available with different lengths depending on needs.
