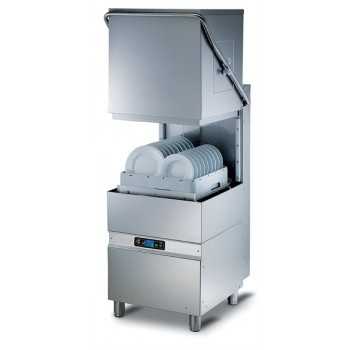

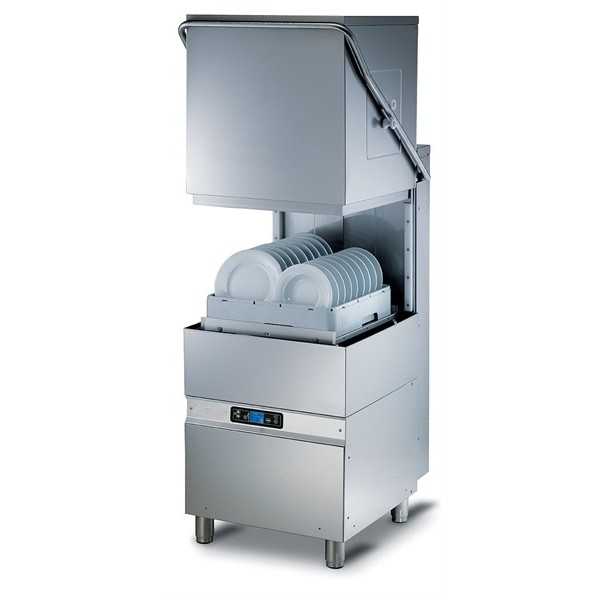

Pass through hood dishwasher with detergent and rinse aid pump

Digital hood dishwasher with 50x50 cm square basket. Useful washing height 41.5 cm. Equipped with detergent and rinse aid dispensers installed as standard, and stainless steel impellers. Ideal for catering businesses that need to wash large quantities and different types of dishes, glasses, trays and cutlery in bars and restaurants. 100% Made in Italy.

This glasswasher comes with:

- Detergent and rinse aid dispensers installed as standard;

- Stainless steel impellers .

CONTROL PANEL

The digital control panel offers the possibility to choose between 4 wash cycles and a drain cycle (the latter only if a drain pump is installed, an optional accessory).

The display allows you to easily monitor the temperature of the tank and boiler, and to preserve the life of the dishwasher thanks to a self-diagnosis system and maintenance warnings.

The color-changing cycle start button will keep you updated on the status of the machine.

CHARACTERISTICS

Product manufactured in Italy;

Structure in AISI 304 stainless steel;

Digital control panel;

The Termostop function ensures that the washing and rinsing phases begin only if the set temperatures are reached;

Double electric detergent and rinse aid dispenser installed as standard guarantees the best result from wash cycles with considerable savings thanks to the regulation of the dosage on the electronic card;

Stainless steel washing and rinsing impellers ensure reliability and durability;

Easily removable basket support;

The drain pump allows you to automatically drain and carry out a partial change of clean water at each wash cycle (optional accessory).

DATA SHEET

• Dimensions: L.62 x D.77 x H.143.5/190 cm
• Number of baskets/hour - (+55 °C): maximum 60
• Maximum glass height: 39 cm
• Maximum plate diameter: 41.5 cm
• Maximum pot height: 39 cm
• Bread basket litres: 40 (H = 39 cm)
• Trays: GN 1/1
• Tank resistance - Tank capacity: 4.5 kW - 37 L
• Boiler resistance - Boiler capacity: 5.4 kW - 7.3 L
• Pump power: 1.34 kW / 1.8 Hp
• Total Power / Current: 6.74 kW / 16 A
• Standard power supply voltage: 400 V / 3N+T / 50 Hz
• Recommended water supply: +55 °C
• Recommended water hardness: 7 / 10 °f
• Water consumption per cycle: (with recommended pressure 2 BAR): 2 L
• Adjustable detergent and rinse aid dispenser: electric

STANDARD KIT

• 8 place cutlery tray: 1
• Basket for glasses (dimensions 50x50x10 cm): 1
• Basket of 18 plates (dimensions 50x50x10 cm): 2
• Integral tank filter: 2

INSTALLABLE OPTIONAL

• Power supply voltage 230 V / 3+T
• Pressure pump installed 0.5 Hp
• Installed drain pump: 34W
• Boiler resistance 4.5 kW
• 9 kW boiler resistance
• 4 place tray rack (dimensions: 50x50x20 cm)
• Inclined basket for wine glasses (dimensions: 50x50x17 cm)
• Remote control with LCD display

THE MANUFACTURER recommends using a filter or a water softener device. Reducing or eliminating calcium from water can significantly improve the life and efficiency of your machinery by preventing calcium build-up in kettles, hot water coils and taps. It also prevents the formation of white marks on glasses and plates. Any damage caused by limescale deposits is not covered by the warranty
