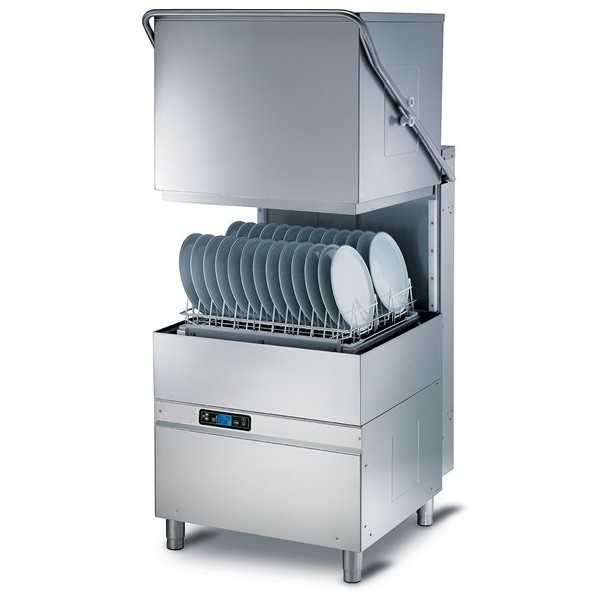

Pass through hood dishwasher 50 x 60 cm basket with detergent and rinse aid pump

Wide range of models suitable for every situation. The control system via the electronic card provides great customization possibilities based on your needs, allowing you to precisely adjust any parameter and guarantee always optimal washing results; the practical messages on the display will allow you to preserve the life of the dishwasher. The practical LCD display makes any operation simple, from changing the wash cycle to monitoring the status of the dishwasher.

The hood dishwasher is able to wash up to 22 pizza plates in a very small space: only 720mm wide and with the same depth as traditional stainless steel entry/exit tables, with a maximum productivity of 60 baskets/hour (1320 plates /Now). Thanks to the high-performance washing pump and the washing impellers, it is suitable for plates, objects with dimensions up to 500x600x410(h)mm, bread baskets, GN 1/1 pans and 600x400 pastry trays. The hood models are also equipped with an easily removable basket support for easy cleaning and a rounded molded tank with integral filters, to guarantee perfect drainage and absolute hygiene. The "PUSH TO START" cycle start system ensures less waste, preventing starting washes empty.

The electronic control allows you to manage various parameters to give you a great level of customization based on your needs while the self-diagnosis allows you to reduce machine downtime to a minimum by already suggesting some simple operations to perform to resolve the situation. The self-cleaning cycle at the end of the day allows you to clean the wash tank and empty the boiler of hot water, thus preventing limescale formation inside. Thanks to the Termostop function, washing and rinsing only begin once the desired temperature has been reached. The double peristaltic electric detergent and rinse aid dispenser installed as standard guarantees maximum results from each wash cycle with great savings due to the precise dosage managed by the electronic board; the molded washing and rinsing impellers instead ensure great reliability and durability over time. The bodywork is entirely made of AISI 304 steel and has been designed with all the components in the front part to allow easy assistance by the technician.

DATA SHEET

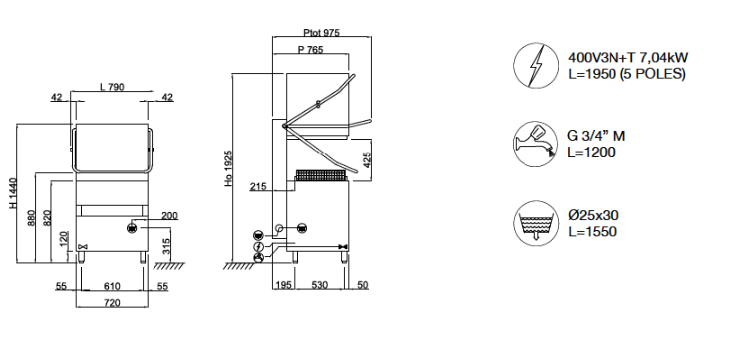

• Dimensions: L.72 x D.77 x H.143.5/190 cm
• Number of baskets/hour - (+55 °C): maximum 60
• Maximum plate diameter: 40 cm
• Maximum pot height: 39 cm
• Bread basket litres: 60 (H = 40 cm)
• Trays: GN 1/1 - 60 x 40 cm
• Tank resistance - Tank capacity: 4.5 kW - 37 L
• Boiler resistance - Boiler capacity: 5.4 kW - 7.3 L
• Pump power: 1.64 kW / 2.2 Hp
• Total Power / Current: 7.04 kW / 16 A
• Recommended water supply: +55 °C
• Recommended water hardness: 7 / 10 °f
• Water consumption per cycle: (with recommended pressure 2 BAR): 2 L
• Adjustable detergent and rinse aid dispenser: electric

STANDARD KIT

• 8 place cutlery tray: 1
• Tray basket 10/12 places (dimensions 50x60x10 cm): 1
• Basket for glasses (dimensions 50x60x10 cm): 1
• Basket of 22 plates (dimensions 50x60x10 cm): 1
• Integral tank filter: 2

INSTALLABLE OPTIONAL

• Power supply voltage 230 V / 3+T
• Pressure pump installed 0.5 Hp
• Installed drain pump: 34W
• Boiler resistance 4.5 kW
• 9 kW boiler resistance
• 4 place tray rack (dimensions: 50x50x20 cm)
• Inclined basket for wine glasses (dimensions: 50x50x17 cm)
• Remote control with LCD display

THE MANUFACTURER recommends using a filter or a water softener device. Reducing or eliminating calcium from water can significantly improve the life and efficiency of your machinery by preventing calcium build-up in kettles, hot water coils and taps. It also prevents the formation of white marks on glasses and plates. Any damage caused by limescale encrustations is not covered by the warranty
