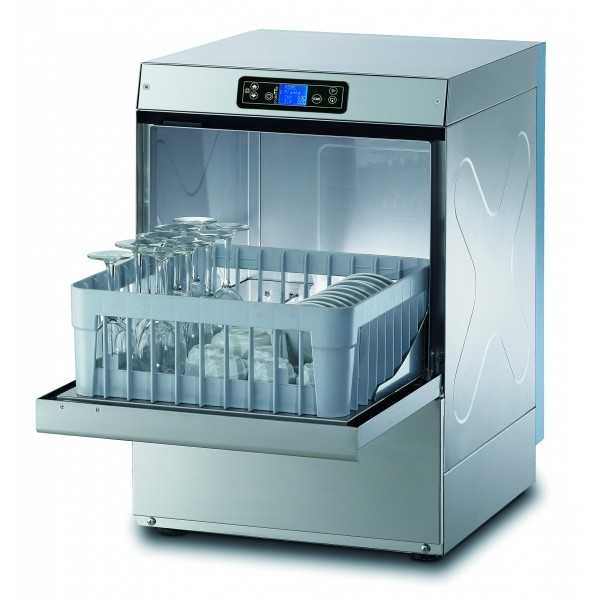

Professional digital glass washer with 40x40 cm square basket. Maximum glass/plate washing height 28.5 / 30.5 cm. Ideal for washing glasses, cups, plates and cutlery in bars and restaurants. 100% Made in Italy.
This glass washer comes with:
- Detergent and rinse aid dispensers installed as standard;
- Stainless steel impellers .
CONTROL PANEL
The digital control panel offers the possibility of choosing between 4 wash cycles and a drain cycle (the latter only if a drain pump is installed, an optional accessory).
The display allows you to easily monitor the temperature of the tub and boiler, and to preserve the life of the dishwasher thanks to a self-diagnosis system and maintenance alerts.
The color-changing cycle start button will keep you updated on the machine's status.
CHARACTERISTICS
Product made in Italy;
Structure in AISI 304 stainless steel;
Digital control panel;
The Thermostop function ensures that the washing and rinsing phases only start if the set temperatures are reached;
Double electric detergent and rinse aid dispenser installed as standard guarantees the best results from washing cycles with significant savings thanks to the dosage adjustment of the electronic board;
Stainless steel wash and rinse impellers ensure reliability and durability over time;
The drain pump allows for automatic draining and a partial replacement of clean water at each wash cycle (optional accessory).
DATA SHEET
- Dimensions: L.47 x D.53.5 x H.71 cm
- Number of baskets/hour - (+55 °C): max 48
- Maximum glass height: 28.5 cm
- Maximum plate diameter: 30.5 cm
- Tank resistance - Tank capacity: 2.6 kW - 17 L
- Boiler resistance - Boiler capacity: 2.5 kW - 3.2 L
- Pump power: 0.26 kW / 0.35 Hp
- Total power / Current : 2.86 kW / 16 A
- Standard power supply voltage: 230 V / 50 Hz
- Recommended water supply: +55 °C
- Recommended water hardness: 7 / 10 °f
- Water consumption per cycle: (with recommended pressure 2 BAR): 2 L
- Adjustable detergent and rinse aid dispenser: electric
STANDARD KIT
- Cutlery holder: 1
- Glass basket (dimensions 40x40x10 cm): 2
- 12-place plate holder: 1
OPTIONAL INSTALLABLE
- Installed pressure pump 0.5 Hp
- Drain pump installed 34 W
- Double wall kit with thermal/acoustic insulation and upper covering
- Inclined basket for wine glasses dimensions 40x40x17 cm
- Kit 4 stainless steel feet 5/7 cm
THE MANUFACTURER recommends using a water filter or softener. Reducing or eliminating calcium from your water can greatly improve the life and efficiency of your equipment by preventing the build-up of calcium in kettles, hot water coils and taps. It also prevents the formation of white marks on glasses and plates. Damage caused by limescale is not covered by the warranty.
Before purchasing.
Before making a purchase, check the positioning of the drain in your room, whether the drain is positioned on the floor and on the wall (up to 5 cm from the floor) or on the wall (more than 5 cm from the floor) .
1st case : If the drain is positioned on the floor and on the wall (up to 5 cm from the floor), you can purchase any type of machine since all the machines produced are designed for gravity water drainage.
2nd case : If the drain is positioned on the wall (more than 5 cm from the floor), you must purchase the drain pump in addition to the standard machine. You can do this at the same time as purchasing the machine (in this case it will be installed directly and at no cost), or you can also do it at a later time (after purchasing the main machine). This is possible because all machines are designed for the installation of the loading pump.
The Drain Pump Kit - 32 W can be found among the Accessories in the product sheet or by searching for the corresponding code in the search bar (RF_03347 ).
