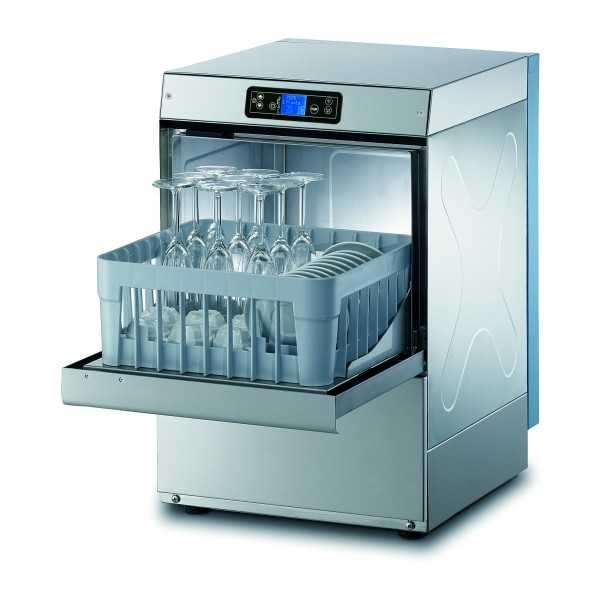

Electronic glasswasher 35 cm basket with detergent and rinse aid pump G25

Professional digital glasswasher with 35x35 cm square basket and useful washing height of 24 cm. Ideal for washing glasses, cups, saucers and cutlery in bars and restaurants. 100% Made in Italy.

This glasswasher comes with:

- Detergent and rinse aid dispensers installed as standard;

- Stainless steel impellers .

CONTROL PANEL

The digital control panel offers the possibility to choose between 4 wash cycles and a drain cycle (the latter only if a drain pump is installed, an optional accessory).

The display allows you to easily monitor the temperature of the tank and boiler, and to preserve the life of the dishwasher thanks to a self-diagnosis system and maintenance warnings.

The color-changing cycle start button will keep you updated on the status of the machine.

CHARACTERISTICS

Product Made in Italy;

Structure in AISI 304 stainless steel;

Digital control panel;

The Termostop function ensures that the washing and rinsing phases begin only if the set temperatures are reached;

Double electric detergent and rinse aid dispenser installed as standard guarantees the best result from wash cycles with considerable savings thanks to the regulation of the dosage on the electronic card;

Stainless steel washing and rinsing impellers ensure reliability and durability;

The drain pump allows you to automatically drain and carry out a partial change of clean water at each wash cycle (optional accessory).

DATA SHEET

• Dimensions: L.42 x D.48.5 x H.66 cm
• Number of baskets/hour - (+55 °C): max 48
• Maximum glass height: 24 cm
• Tank resistance - Tank capacity: 2.6 kW - 13 L
• Boiler resistance - Boiler capacity: 2.5 kW - 3.2 L
• Pump power: 0.19 kW / 0.25 Hp
• Total Power / Current: 2.79 kW / 16 A
• Standard power supply voltage: 230 V / 50 Hz
• Recommended water supply: +55 °C
• Recommended water hardness: 7 / 10 °f
• Water consumption per cycle: (with recommended pressure 2 BAR): 2 L
• Adjustable detergent and rinse aid dispenser: electric

STANDARD KIT

• Cutlery holder: 1
• Basket for glasses (dimensions 35x35x15 cm): 2
• 12-seater saucer holder: 1

INSTALLABLE OPTIONAL

• Pressure pump installed 0.5 Hp
• Drain pump installed 34 W
• Kit of 4 stainless steel feet 5/7 cm

THE MANUFACTURER recommends using a filter or a water softener device. Reducing or eliminating calcium from water can significantly improve the life and efficiency of your machinery by preventing calcium build-up in kettles, hot water coils and taps. It also prevents the formation of white marks on glasses and plates. Any damage caused by limescale deposits is not covered by the warranty.

Before purchasing.

Before making the purchase, check the positioning of the drain in your room, whether the drain is positioned on the floor and on the wall (up to 5 cm from the floor) or on the wall (more than 5 cm from the floor) .

1st case : If the drain is positioned on the ground and on the wall (up to 5 cm from the floor), you can purchase any type of machine since all the machines produced are designed for gravity-driven water drainage.

2nd case : If the drain is positioned on the wall (more than 5 cm from the floor), you must purchase the drain pump in addition to the standard machine. You can do this at the same time as purchasing the machine (in this case it will be installed directly and at no cost), or you can also do it at a later time (after purchasing the main machine). This is possible since all the machines are designed for the installation of the loading pump.

You can find the drain pump kit - 32 W among the Accessories in the product sheet or by searching for the corresponding code in the search bar (RF_03347 ).
