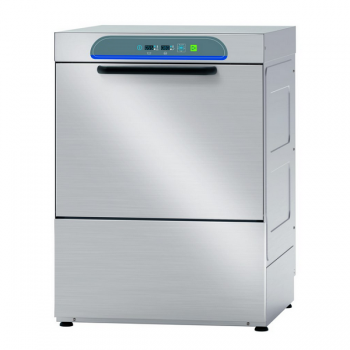

Electronic dishwasher & glasswasher 50 x 60 cm with detergent and rinse aid pump X8

Professional digital dishwasher with 50x60 cm square basket. Maximum height for washing glasses / plates 34 / 37 cm. Equipped with detergent and rinse aid dispensers installed as standard, and stainless steel impellers. Ideal for washing dishes, glasses, cups, cutlery and baking trays. 100% Made in Italy.

This glasswasher comes with:

- Detergent and rinse aid dispensers installed as standard;

- Stainless steel impellers .

The optional 4-place tray rack accessory, code RF_00790, allows you to wash GN 1/1 and 60x40 cm trays.

CONTROL PANEL

The digital control panel offers the possibility to choose between 4 wash cycles and a drain cycle (the latter only if a drain pump is installed, an optional accessory).

The display allows you to easily monitor the temperature of the tank and boiler, and to preserve the life of the dishwasher thanks to a self-diagnosis system and maintenance warnings.

The color-changing cycle start button will keep you updated on the status of the machine.

CHARACTERISTICS

Product manufactured in Italy;

Structure in AISI 304 stainless steel;

Digital control panel;

The Thermostop function ensures that the washing and rinsing phases begin only if the set temperatures are reached;

Double electric detergent and rinse aid dispenser installed as standard guarantees the best result from wash cycles with considerable savings thanks to the regulation of the dosage on the electronic card;

Stainless steel washing and rinsing impellers ensure reliability and durability;

The drain pump allows you to automatically drain and carry out a partial change of clean water at each wash cycle (optional accessory).

BEFORE BUYING

- The MANUFACTURER recommends using a filter or a water softener device. Reducing or eliminating calcium from water can significantly improve the life and efficiency of your machinery by preventing calcium build-up in kettles, hot water coils and taps. It also prevents the formation of white marks on glasses and plates. Any damage caused by limescale encrustations is not covered by the warranty;

- Check the positioning of the drain in your room. All the machines are produced as standard with gravity water drainage. The drain must never exceed 5 cm in height from the floor. However, if the drain cannot be done by falling, request the version with the drain pump. All machines are prepared for installing the pump later after purchase.

DATA SHEET

• Dimensions: L.58.5 x D.71.5 x H.86.5 cm
• Number of baskets/hour - (+55 °C): max 40
• Maximum glass height: 34 cm
• Maximum plate diameter: 37 cm
• Maximum pot height: 34 cm
• Trays: GN 1/1 (53x32.5 cm) - 60x40 cm
• Tank resistance - Tank capacity: 2.6 kW - 30 L
• Boiler resistance - Boiler capacity: 5.4 kW - 7.3 L
• Pump power: 1.12 kW / 1.5 Hp
• Total Power / Current: 6.52 kW / 16 A
• Standard power supply voltage: 400 V / 3N+T / 50 Hz
• Recommended water supply: +55 °C
• Recommended water hardness: 7 / 10 °f
• Water consumption per cycle: (with recommended pressure 2 BAR): 2 L
• Adjustable detergent and rinse aid dispenser: electric

STANDARD KIT

• Cutlery holder: 2
• Tray basket 10/12 places (dimensions 50x60x10 cm): 1
• Basket for glasses (dimensions 50x60x10 cm): 1
• Basket of 22 plates (dimensions 50x60x10 cm): 1

INSTALLABLE OPTIONAL

• Power supply voltage 230 V / 3+T
• Pressure pump installed 0.5 Hp
• Drain pump installed 34 W
• Boiler resistance 4.5 kW
• 9 kW boiler resistance
• 4-place tray rack (dimensions 50x50x20 cm)
• Inclined basket for wine glasses (dimensions 50x50x17 cm)
• Kit of 4 stainless steel feet 5/7 cm

Before purchasing.

Before making the purchase, check the positioning of the drain in your room, whether the drain is positioned on the floor and on the wall (up to 5 cm from the floor) or on the wall (more than 5 cm from the floor) .

1st case : If the drain is positioned on the ground and on the wall (up to 5 cm from the floor), you can purchase any type of machine since all the machines produced are designed for gravity-driven water drainage.

2nd case : If the drain is positioned on the wall (more than 5 cm from the floor), you must purchase the drain pump in addition to the standard machine. You can do this at the same time as purchasing the machine (in this case it will be installed directly and at no cost), or you can also do it at a later time (after purchasing the main machine). This is possible since all the machines are designed for the installation of the loading pump.

You can find the drain pump kit - 32 W among the Accessories in the product sheet or by searching for the corresponding code in the search bar (RF_03347 ).
