Manual gas combi oven 5 trays - 1/1 GN

Combined gas steam convection oven for 5 GN 1/1 trays with electromechanical panel. Simple to use with cooking timer from 10 to 120 minutes/infinity. Temperature settable from 100° to 260 ° C (gas ovens) from 100° to 270° C (for electric ovens). Direct steam with adjustment via knob selector.

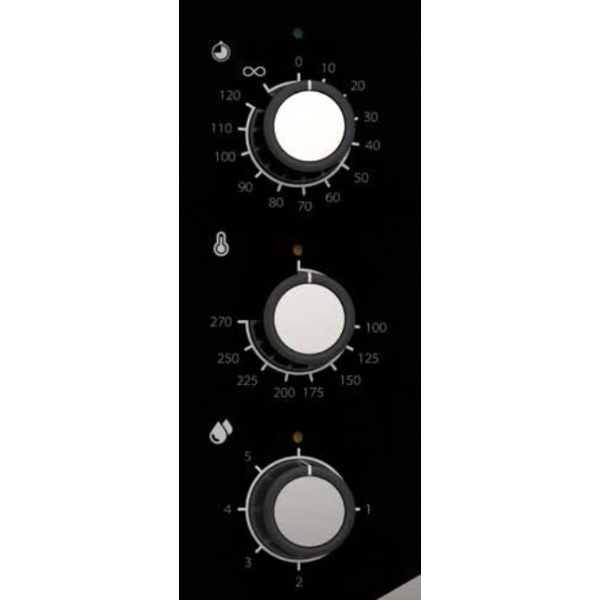

ELECTROMECHANICAL PANEL

1) Time

2) Temperature

3) Steam

DATA SHEET

Dimensions: L.73 x D.85 x H.80.1 cm

Weight: 89kg

Guide pitch: 6.8 cm

Thermal input: 9.3 kW

No. of motors: 1 bidirectional

Power supply: 220/230 V | 50Hz

Power supply: multigas (methane test)

Capacity: 5 GN 1/1 trays/grills

Cooking: ventilated

Steam: direct with adjustment via knob selector

Cooking chamber: AISI 304 steel

Temperature: 100-260° C

Temperature control: Thermostat

Control panel: Electromechanical - right side

Door: right side opening - ventilated - inspectable glass

Water protection: IPX3

Adjustable feet

STANDARD EQUIPMENT

Side supports 1 right + 1 left

Single-phase cable: 160 cm

Manual washing predisposition

Condensate collection tray with drain on door

Hinge with door block for openings adjusted to 60°, 90°, 120°, 180°

LPG nozzle
