Touch control gas combi oven 5 trays - 1/1 GN

Combined gas steam convection oven for 5 GN 1/1 trays with digital color touch screen panel. Knob with scroll and push function. Multipoint core probe as standard. 10 programmable cooking phases. Programmable ignition. Possibility of controlling hood, prover and maintainer (optional accessories). Quick management of the most frequently used recipes. 500 programmable recipes , 40 stored.

TECHNICAL FEATURES TOUCH LINE

Airflowlogic : allows uniform cooking in all areas of the oven.

Humilogic : water is inserted directly into the rear part of the fan to reach high humidity levels in the cooking chamber and reduce consumption.

Drylogic : rapid cooking chamber drying system.

New standard washing system : 4 washing systems; detergent and rinse aid combined for less space, less consumption and more efficiency.

PLUS : 360° management of functions, oven connectable to the network via Wi-Fi connection.

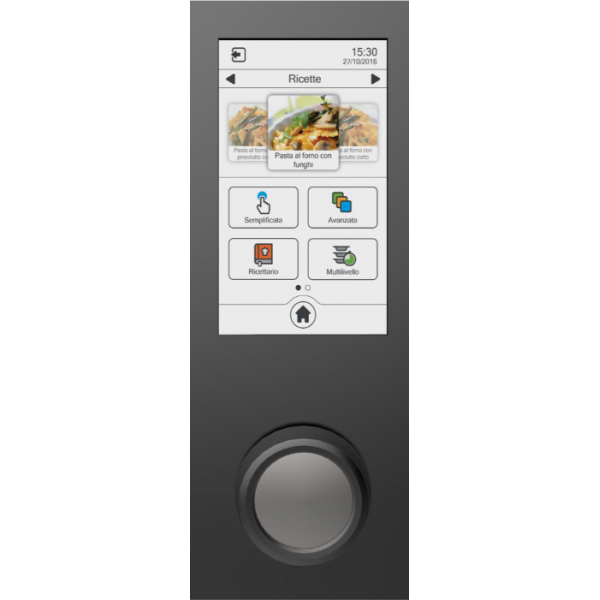

TOUCH SCREEN PANEL

1. Time and date

2. Recipe list

3. Simplified cooking

4. Advanced cooking

5. Recipe book

6. Multilevel cooking

7. Home

8. Accessories

9. Rapid cooling

10. Settings

11. Technical service

DATA SHEET

Dimensions: L.73 x D.85 x H.80 cm

Weight: 89kg

Guide pitch: 6.8 cm

Thermal input: 9.3 kW

No. of motors: 1 bidirectional

Voltage: 220/230

Power supply: multigas (methane test)

Capacity: 5 GN 1/1 trays/grills

Cooking: semi-static + ventilated

Steam: direct with automatic adjustment via touch screen selector

Cooking chamber: AISI 304 steel

Temperature: 30 - 260° C

Temperature control: digital probe

Control panel: Touch screen

Number of programs: 500

Programmable phases: 10

Number of languages: 42

Preset temperature: 180° C

Preheating: available

Door: right side opening - ventilated - inspectable glass

Water protection: IPX3

Adjustable feet

STANDARD EQUIPMENT

Side supports 1 right + 1 left

Single-phase cable: 160 cm

USB socket

Multipoint core probe

Heart probe support

Integrated automatic washing

Condensate collection tray with drain on door

Hinge with door block for openings adjusted to 60°, 90°, 120°, 180°

LPG nozzle
