Ref: RF_02042
2.599,00 € (price excluding 22% VAT)
€3,170.78 (price with 22% VAT included)

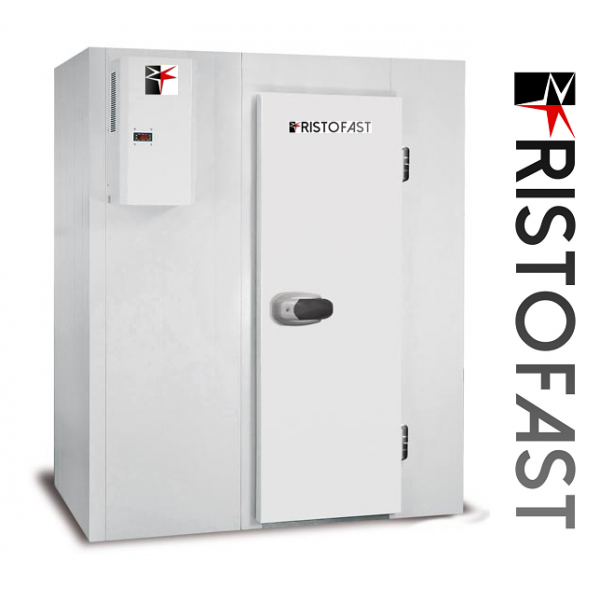

Professional positive cold room with floorless engine. Ideal for storing fruit and meats. It responds to any food preservation need and complies with the most restrictive health and hygiene standards. Ideal for preserving food in businesses such as restaurants, hotels, pizzerias and butchers.
  Can be ordered in lengths between 60 and 200 cm | SCAFFALATURA A 4 PIANI IN POLIPROPILENE - P.40 x H.160 cm €299.00 | |
  Can be ordered in lengths between 60 and 200 cm | SCAFFALATURA A 4 PIANI IN POLIPROPILENE - P.40 x H.180 cm €309.00 | |
  Can be ordered in lengths between 60 and 200 cm | SCAFFALATURA A 4 PIANI IN POLIPROPILENE - P.40 x H.200 cm €319.00 | |
  | Kit illuminazione per celle frigorifere €99.99 |
Designed to meet any type of need of modern conservation. The high quality of our cold rooms and our innovative production process allow us to comply with the most restrictive hygiene and health standards with a high flexibility and speed of assembly.
Composed of 7 cm thick modular panels. The insulation is made with the injection of rigid polyurethane foam density 40/42 kg/m3 (closed cells 95%). The panels are locked using eccentric hooks. The ceiling panels are positioned concealed inside the vertical ones in order to ensure a harmonious aesthetic appearance. The internal and external wall covering is made of non-toxic pre-painted white sheet metal. Wall coverings in white pre-painted sheet metal or in Aisi 304 stainless steel are available upon request.
Technical features :
• Hinges easily adjustable on-site in 3 directions
• Standard handle with key lock and internal safety release
• Quick and easy assembly via eccentric hook fastening
TECHNICAL DATA SHEETS for cells H.207 cm
Dimensions : L.134 x D.154 x H.207 cm
Volume : 3.36 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.37 kW - 0.5 Hp
Consumption : 1.2 kW
Dimensions: L.134 x D.194 x H.207 cm
Volume : 4.32 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.37 kW - 0.5 Hp
Consumption : 1.2 kW
Dimensions: L.134 x D.254 x H.207 cm
Volume : 5.76 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.56 kW - 0.75 Hp
Consumption : 1.2 kW
Dimensions : L.134 x D.294 x H.207 cm
Volume : 6.72 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.56 kW - 0.75 Hp
Consumption : 1.4 kW
TECHNICAL DATA SHEETS for cells H.247 cm
Dimensions: L.134 x D.154 x H.247 cm
Volume : 4.03 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.37 kW - 0.5 Hp
Consumption : 1.2 kW
Dimensions: L.134 x D.194 x H.247 cm
Volume : 5.18 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.37 kW - 0.5 Hp
Consumption : 1.2 kW
Dimensions: L.134 x D.254 x H.247 cm
Volume : 6.91 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.56 kW - 0.75 Hp
Consumption : 1.4 kW
Dimensions : L.134 x D.294 x H.247 cm
Volume : 8.06 m3
Power supply (motor) : 230 V / 1 / 50 Hz
Power (engine) : 0.74 kW - 1 Hp
Consumption : 1.3 kW
Professional positive cold room with floorless engine. Ideal for storing fruit and meats. It responds to any food preservation need and complies with the most restrictive health and hygiene standards. Ideal for preserving food in businesses such as restaurants, hotels, pizzerias and butchers.
