Anti-contagion cabin cell for swabs - L.120 x P.133 x H.231 cm

Anti-contagion cabin cell for swabs.

Characteristics:
- Built with insulating sandwich panels
- Insulated with 40/42 high density polyurethane (HDPE)
- Internal and external pre-painted sheet metal for food use or in 304L stainless steel
- Cell thickness 8 cm
- Removable panels secured by eccentric hooks
- Anti-slip stainless steel floor for both the white and stainless steel versions
- Door with seal and tempered glass porthole
- Ermetic closure
- Possibility of replacing the double glazing
- Entrance threshold in stainless steel

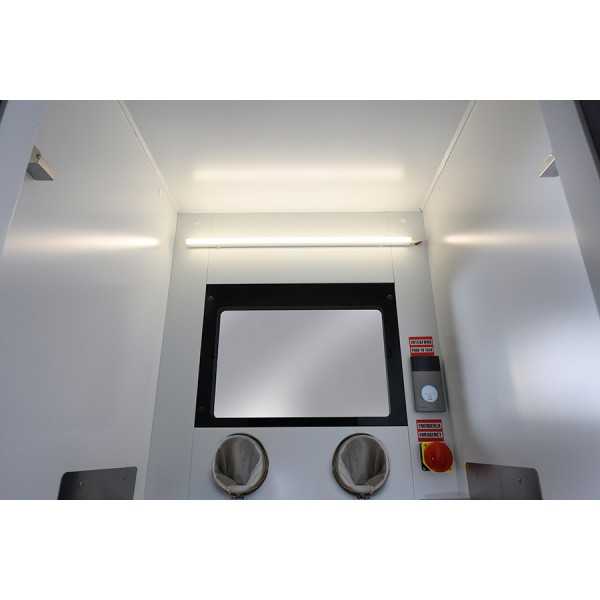

- Front of the cell for use by the healthcare worker with double porthole (upper/lower)
- Entrance for disposable gloves
- Automatic intercom for communication with the patient (Internal/External)
- Emergency button with visual and acoustic alarm
- Supply of assembled or disassembled cells

INSTALLATION
• Place the DOM TRIAGE BOX on a support surface suitable to support the weight of the box, calculating the maximum weight of a person in order to avoid sagging and overturning.
• Keep the DOM TRIAGE BOX protected from atmospheric agents.
• Connect the product to the power supply in compliance with the data on the plate.
The connection must be carried out by qualified personnel in compliance with the applicable regulatory compendium.

FIRST USE AT THE START OF EVERY SHIFT
• At the start of each shift, check the integrity of the gloves. In the presence of the slightest anomaly, before proceeding, they must be replaced.
• Carry out an operational test of the devices present: internal light, intercom, emergency and reset buttons.
• Before allowing the doctor or any member of the healthcare staff to enter the DOM TRIAGE BOX, carry out sanitisation in accordance with the WHO recommendations; sanitization must also be carried out on the external surfaces of side B, glass and gloves. All internal and external surfaces are designed to resist even Ethanol solutions > 70%. The personnel carrying out sanitization must use adequate PPE in application of the internal risk assessment document in full application of TITLE X of Legislative Decree 81/2008 and subsequent amendments "Exposure to Biological Agents".

USE
1. The patient, following the health provisions in force, goes outside SIDE B of the box, reporting his presence.
2. The healthcare staff goes inside the box by entering the door on side A.
3. The healthcare personnel, in application of the internal procedures, WEARING GLOVES IN ADVANCE and inserting their arms inside the holes/gloves on side B, carries out the swab test.
4. The swab test is inserted into the appropriate tube and deposited in the appropriate external collector by the patient.
For subsequent swabs, the medical staff must adequately wash the gloves with an adequate solution positioned on the external shelf, all in compliance with the methods and times described in the internal procedures.
5. The healthcare staff responsible for sanitization collects the package with the swab tests carried out in accordance with the specific internal procedure; subsequently sanitize all internal and external surfaces, in accordance with WHO recommendations, PAYING PARTICULAR ATTENTION TO SANITIZING THE GLOVES.

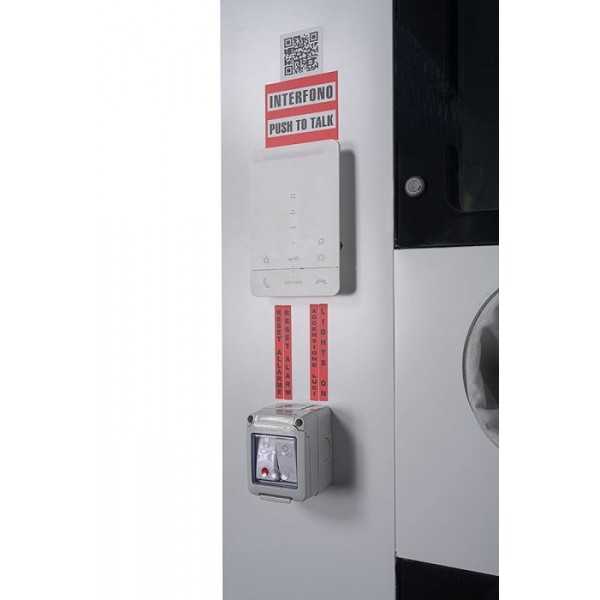

LIGHT, INTERCOM AND EMERGENCY OPERATION
• To turn on the internal light, press the appropriate button on SIDE B.
• For the intercom, refer to the device's instruction booklet.
• The emergency is deactivated by pressing the appropriate button on the LA

DATA SHEET

External dimensions: L.120 x D.133.1 x H.231 cm
Internal dimensions of the room: L.104 x D.104 x H.215.1 cm
Insulation thickness: 8 cm
Door thickness: 6 cm
Internal volume: 2326 litres
Weight: 225kg
Power supply: 230 V / 1 / 50/60 Hz
Electrical power: 345 W

Standard accessories:
- Intercom system kit
- Emergency call device
- Gloves for the chemical industry
- Stop button
- Led illumination
- 2 support shelves
- 2 Garment holders

Door reversibility on request
