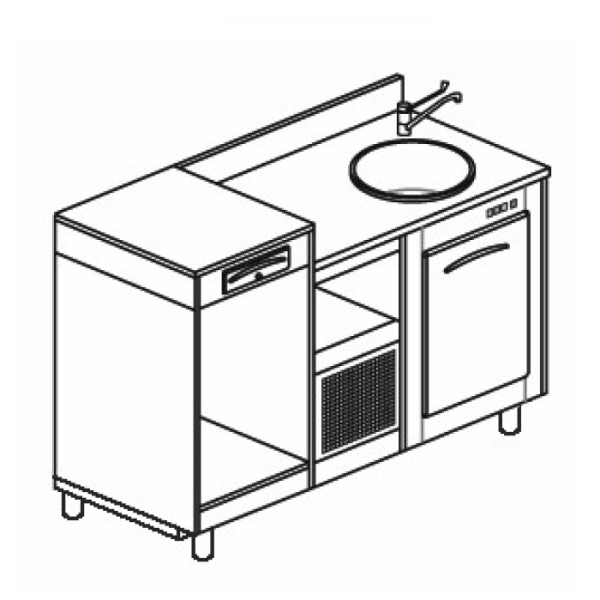

Refrigerated bar counter with 1 door, coffee machine table top and sink, length 150 cm

Plinth in 12/10 galvanized sheet metal. Cold room in 18/10 AISI 304 stainless steel, BA finish, monobloc injected ecological expanded polyurethane insulation with density 40 kg/m3 equipped with rounded internal corners. Adjustable intermediate grid in stainless steel. Doors, drawers, chests of drawers in 18/10 AISI 304 stainless steel. Static refrigeration consisting of a finned evaporator connected to a built-in hermetic condensing unit. Electrical panel equipped with digital electronic thermostat and indicator light switches. Neutral compartments made with front structure in BA finish stainless steel, internal structure, including shelves, in plasticized zinc sheet. Worktop in 18/10 AISI 304 stainless steel equipped with sinks and lever mixer, bottle tubes. Right-left coffee machine top, scotchbrite finish, with stainless steel front panel complete with service drawer and knockers.

Available in 2 different depths :

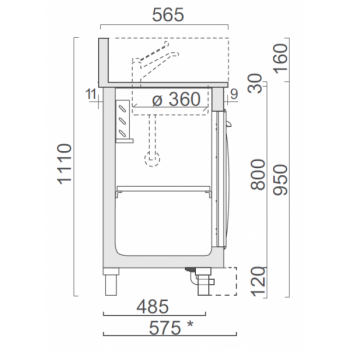

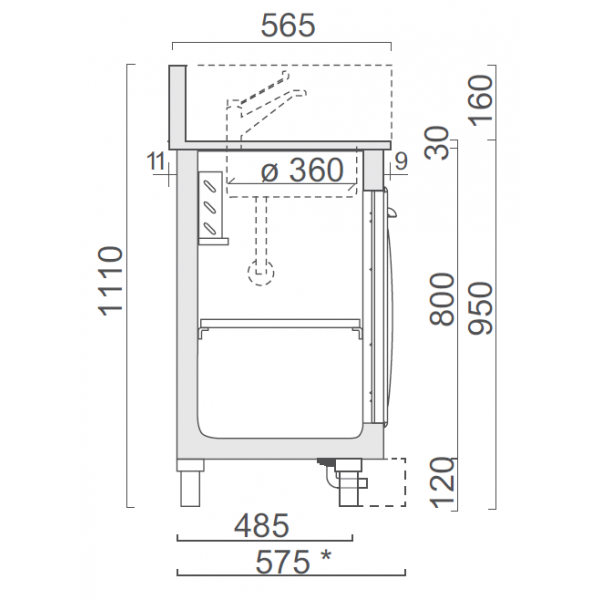

• L.150 x D.55.3 x H.111 cm
• L.150 x D.67.8 x H.111 cm

Power absorbed : 286 W

Cooling capacity : 303 W

Temperature : -2/+8°C

Power supply : 230 V - 50/60 Hz - Single phase

Exhaust pipes :

• Evaporator condensate drain pipe: Ø 2 cm
• Cell drain pipe: Ø 2.5 cm
• Copper pipe for refrigeration system: suction = Ø 1 cm, delivery = Ø 0.6 cm

SUPPLIED RAW
