REFRIGERATED STAINLESS STEEL BAR COUNTER WITH 6 SPACES - L.350 cm

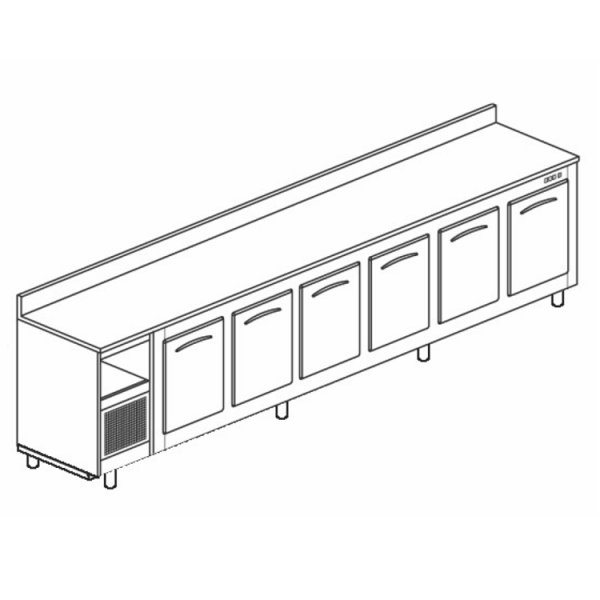

Refrigerated bar counter with 6 doors length 350 cm

Ref: RF_01521

Made in italy

4.999,00 € (price excluding 22% VAT)

€6,098.78 (price with 22% VAT included)

Dimensions: L.350 x P.56.5 x H.111 cm - L.350 x P.69 x H.111 cm Power absorbed: 332 W Cooling output: 393 W Temperature: -2/+8°C Power supply: 230 V - 50/60 Hz - Single phase MANUFACTURED IN 18/10 AISI 304 STAINLESS STEEL

Depth
Ask a Quote

100% secure payments
account_circleSend to a friend > Information request
Refrigerated bar counter with 6 doors length 350 cm

Refrigerated bar counter with 6 doors length 350 cm


Dimensions: L.350 x P.56.5 x H.111 cm - L.350 x P.69 x H.111 cm Power absorbed: 332 W Cooling output: 393 W Temperature: -2/+8°C Power supply: 230 V - 50/60 Hz - Single phase MANUFACTURED IN 18/10 AISI 304 STAINLESS STEEL

Send to a friend


I accept the terms of the privacy policy


Ask a Quote

12/10 galvanized sheet metal plinth. Cold room in 18/10 AISI 304 stainless steel, BA finish, monobloc injected ecological expanded polyurethane insulation with density 40 kg/m3 equipped with rounded internal corners. Adjustable intermediate grid in stainless steel. Doors, drawers, chests of drawers in 18/10 AISI 304 stainless steel. Static refrigeration consisting of a finned evaporator connected to a built-in hermetic condensing unit. Electrical panel equipped with digital electronic thermostat and indicator light switches. Neutral compartments made with stainless steel front structure, internal structure, including shelves, in plasticized zinc sheet. Worktop in 18/10 AISI 304 stainless steel with scotchbrite finish.

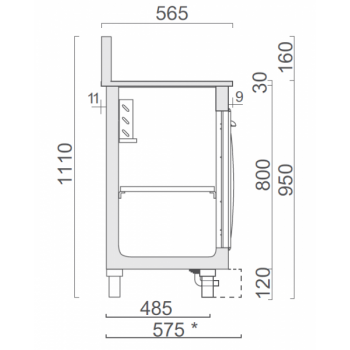

Available in 2 different depths :
  • L.350 x D.56.5 x H.111 cm
  • L.350 x D.69 x H.111 cm
Power absorbed : 332 W
Cooling capacity : 393 W
Temperature : -2/+8°C
Power supply : 230 V - 50/60 Hz - Single phase
Exhaust pipes :
  • Evaporator condensation drain pipe: Ø 2 cm
  • Cell drain pipe: Ø 2.5 cm
  • Copper pipes for refrigeration system: suction = Ø 1 cm, delivery = Ø 0.6 cm
MANUFACTURED IN 18/10 AISI 304 STAINLESS STEEL
RF_01521_56107

Data sheet

Made in Italy
Yes
Bar counter
Refrigerated bar counter
Length
and 350 to 400 cm
Dimensions (LxDxH cm)
350 x 56,5 x 111
350 x 69 x 111
