STAINLESS STEEL REFRIGERATED BAR COUNTER WITH 4 COMPARTMENTS - L.350 cm

Refrigerated bar counter with 4 doors length 350 cm

Ref: RF_01519

Made in italy

3.999,00 € (price excluding 22% VAT)

€4,878.78 (price with 22% VAT included)

Dimensions: L.350 x P.56.5 x H.111 cm - L.350 x P.69 x H.111 cm Power absorbed: 438 W Cooling output: 393 W Temperature: -2/+8°C Power supply: 230 V - 50/60 Hz - Single phase MANUFACTURED IN 18/10 AISI 304 STAINLESS STEEL

Depth
Ask a Quote

100% secure payments
account_circleSend to a friend > Information request
Refrigerated bar counter with 4 doors length 350 cm

Refrigerated bar counter with 4 doors length 350 cm


Dimensions: L.350 x P.56.5 x H.111 cm - L.350 x P.69 x H.111 cm Power absorbed: 438 W Cooling output: 393 W Temperature: -2/+8°C Power supply: 230 V - 50/60 Hz - Single phase MANUFACTURED IN 18/10 AISI 304 STAINLESS STEEL

Send to a friend


I accept the terms of the privacy policy


Ask a Quote

12/10 galvanized sheet metal plinth. Cold room in 18/10 AISI 304 stainless steel with BA finish, insulation in ecological injected polyurethane foam with a density of 40 kg/m3 equipped with rounded internal corners. Adjustable intermediate grille in stainless steel. Doors, drawers, drawer units in 18/10 AISI 304 stainless steel. Static refrigeration consisting of a finned evaporator connected to a built-in hermetic condensing unit. Electrical panel equipped with digital electronic thermostat and indicator lights. Neutral compartments made with a front structure in stainless steel, internal structure, including shelves, in galvanized plasticized sheet metal. Worktop in 18/10 AISI 304 stainless steel with Scotchbrite finish.

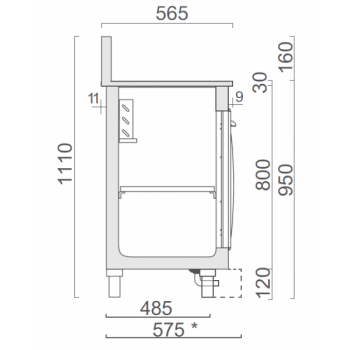

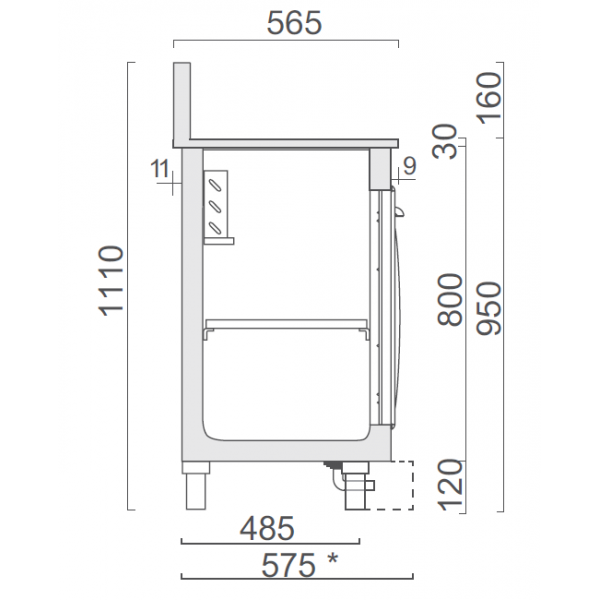

Available in 2 different depths :
  • L.350 x D.56,5 x H.111 cm
  • L.350 x D.69 x H.111 cm
Power consumption : 438 W
Cooling capacity : 393 W
Temperature : -2/+8°C
Power supply : 230 V - 50/60 Hz - Single phase
Exhaust pipes :
  • Evaporator condensation drain pipe: Ø 2 cm
  • Cell drain pipe: Ø 2.5 cm
  • Copper pipes for refrigeration systems: suction = Ø 1 cm, delivery = Ø 0.6 cm
MADE OF 18/10 AISI 304 STAINLESS STEEL
SUPPLIED RAW
RF_01519_56103

Data sheet

Made in Italy
Yes
Bar counter
Refrigerated bar counter
Length
and 350 to 400 cm
Dimensions (LxDxH cm)
350 x 56,5 x 111
350 x 69 x 111
