Refrigerated bar counter with 1 door length 200 cm
Ref: RF_01516
Made in italy
2.319,00 € (price excluding 22% VAT)
€2,829.18 (price with 22% VAT included)
Dimensions: L.200 x P.56.5 x H.111 cm - L.200 x P.6 9 x H.111 cm Power absorbed: 286 W Cooling output: 303 W Temperature: -2/+8°C Power supply: 230 V - 50/60 Hz - Single phase MANUFACTURED IN 18/10 AISI 304 STAINLESS STEEL
12/10 galvanized sheet metal plinth. Cold room in 18/10 AISI 304 stainless steel, BA finish, monobloc injected ecological expanded polyurethane insulation with density 40 kg/m3 equipped with rounded internal corners. Adjustable intermediate grid in stainless steel. Doors, drawers, chests of drawers in 18/10 AISI 304 stainless steel. Static refrigeration consisting of a finned evaporator connected to a built-in hermetic condensing unit. Electrical panel equipped with digital electronic thermostat and indicator light switches. Neutral compartments made with stainless steel front structure, internal structure, including shelves, in plasticized zinc sheet. Worktop in 18/10 AISI 304 stainless steel with scotchbrite finish.

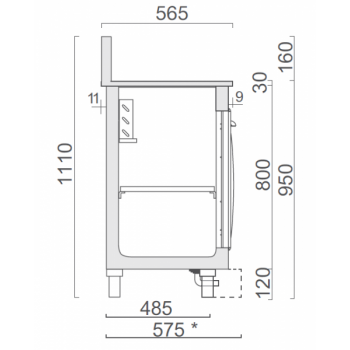

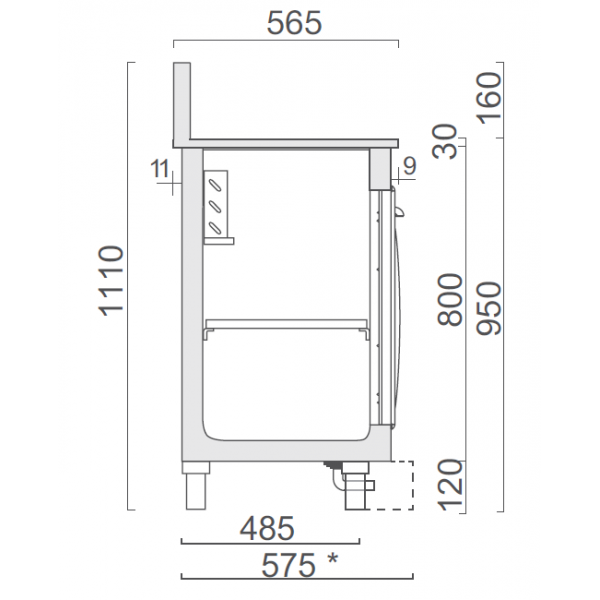

Dimensions :
- L.200 x D.56.5 x H.111 cm
- L.200 x P.69 x H.111 cm
Power absorbed : 286 W
Cooling capacity : 303 W
Temperature : -2/+8°C
Power supply : 230 V - 50/60 Hz - Single phase
Exhaust pipes :
- Evaporator condensation drain pipe: Ø 2 cm
- Cell drain pipe: Ø 2.5 cm
- Copper pipes for refrigeration system: suction = Ø 1 cm, delivery = Ø 0.6 cm
MANUFACTURED IN 18/10 AISI 304 STAINLESS STEEL
SUPPLIED RAW
L.200 x D.56.5 x H.111 cm
RF_01516_56097
Data sheet
- Made in Italy
- Yes
- Bar counter
- Refrigerated bar counter
- Length
- and 200 and 249 cm
- Dimensions (LxDxH cm)
- 200 x 56,5 x 111
200 x 69 x 111
Dimensions: L.200 x P.56.5 x H.111 cm - L.200 x P.6 9 x H.111 cm
Power absorbed: 286 W
Cooling output: 303 W
Temperature: -2/+8°C
Power supply: 230 V - 50/60 Hz - Single phase
MANUFACTURED IN 18/10 AISI 304 STAINLESS STEEL
